View larger

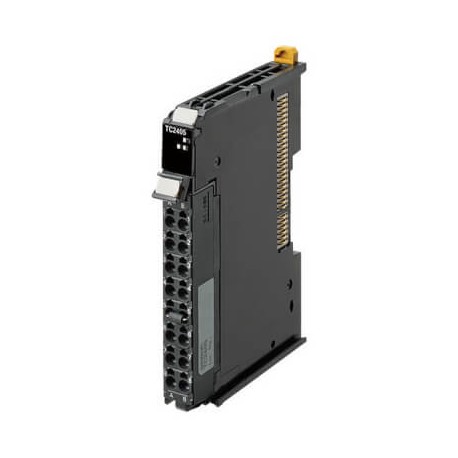

NX-TC2405 NXTC1000D NXTC2405 OMRON 2 loops, input Pt100/thermocouple, 2 digital outputs PNP 24 Vdc, 21 mA/po..
NX-TC2405
NXTC1000D
NXTC2405
OMRON
2 loops, input Pt100/thermocouple, 2 digital outputs PNP 24 Vdc, 21 mA/point, control of heat or cool, alarm of breaking of the heater, terminals, Push-in Plus
2 loops, Thermocouple/Pt100 input, PNP 2 Digital Outputs 24 VDC, 21mA/point, Heat or Cool control, Heater burnout alarm, Push-in Plus terminals
PLC's > Fieldbus, decentr. periphery - analogue/digital I/O module
Integrated Automation > Machine I/O NX-series
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲
I/O systemNX I/O BusType of moduleTemperature controlNumber of digital inputs0Digital input typeNoneNumber of digital outputs2Digital output typePNP, PWMNumber of analog inputs2Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, Pt1000, R, S, T, UNumber of control loops2Linear analog input typeNoneInput circuit typeIsolatedNumber of analog outputs0Linear analog output typeNoneConversion time50 ms/unitSignal processingFree runningControl functionHeat or coolHeater burnout detectionIO-Link masterI/O connection typeScrewless clampNumber of I/O connectors1Detachable I/O connectorSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)75 g
| Feature Name | Feature Value |
|---|---|
| Type of output voltage (EF008222) | DC |
| Degree of protection (IP) (EF005474) | IP20 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of digital output (EF003601) | Transistor |
| Type of electric connection (EF003961) | Spring clamp connection |
| Radio standard UMTS (EF008525) | No |
| Analogue inputs configurable (EF008518) | Yes |
| Analogue input, thermocouple (EF003225) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Analogue input, voltage (EF003221) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Analogue outputs configurable (EF008519) | No |
| Analogue input, current (EF003219) | No |
| Analogue output signal configurable (EF003236) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Short-circuit protection, digital outputs available (EF003320) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Digital inputs configurable (EF008516) | No |
| Digital outputs configurable (EF008520) | Yes |
| Supporting protocol for PROFIsafe (EF007526) | No |
| System accessory (EF004118) | Yes |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Analogue output, voltage (EF003235) | No |
| Analogue input, resistor (EF003222) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Analogue input signal configurable (EF003227) | Yes |
| Supporting protocol for Modbus (EF003057) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| With optical interface (EF003028) | No |
| Analogue output, current (EF003234) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Analogue input, resistor temperature (EF003224) | Yes |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 12 mm |
| Number of digital inputs (EF001992) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Depth (EF000049) | 80 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of analogue inputs (EF001994) | 2 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of digital outputs (EF001993) | 2 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Height (EF000040) | 100 mm |
| Supply voltage DC (EF007534) | 20.4 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| NX-TC2405 NXTC2405 NXTC1000D EN_NX-TC2405.pdf | 4 Mbytes |
|
| NX-TC2405 NXTC2405 NXTC1000D h229_nx_series_temperature_control_unit_nx_tc_datasheet_en.pdf | 4 Mbytes |
|
