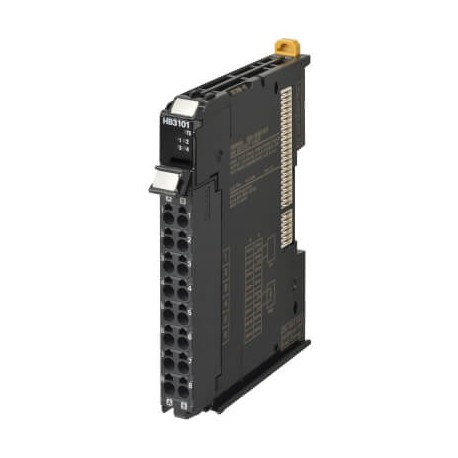

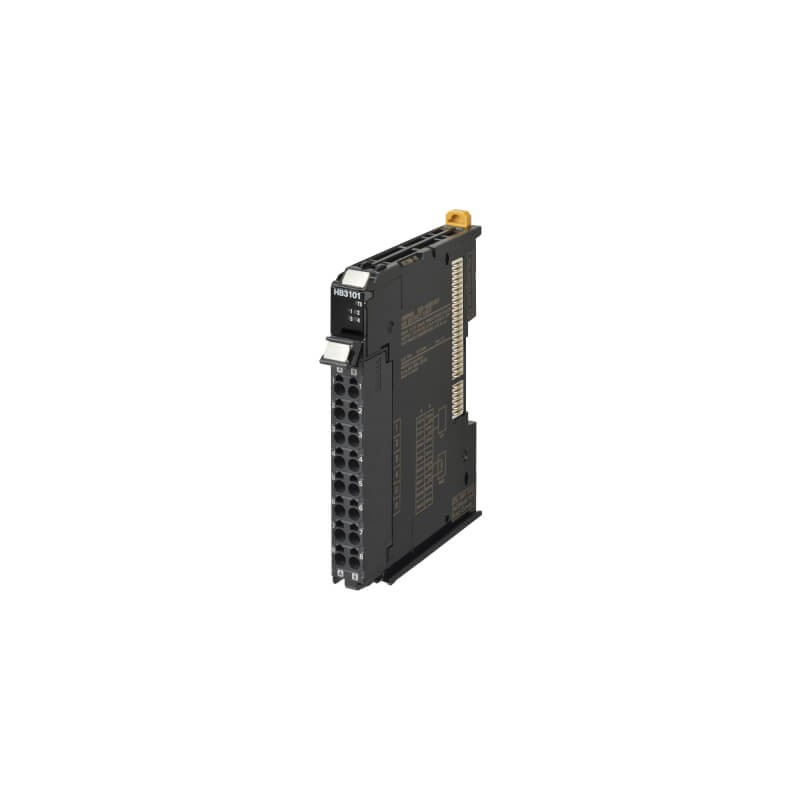

NX-HB3201 NX020123R NXHB3201 OMRON Unit NX break Detection heater, 4 CT inputs (PNP)
NX-HB3201
NX020123R
NXHB3201
OMRON
Unit NX - break Detection heater, 4 CT inputs (PNP)
Heater Burnout Detection Unit, 4 CT inputs, 4 PNP Outputs, screwless push-in connector, 12 mm wide
PLC's > Fieldbus, decentr. periphery - analogue/digital I/O module
Integrated Automation > Machine I/O NX-series
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲
I/O systemNX I/O BusType of moduleTemperature controlNumber of digital inputs0Digital input typeNonePermitted voltage at input12-24 VOFF/ON delay10-10 msNumber of digital outputs4Digital output typePNPNumber of analog inputs4Temperature input typeNoneLinear analog input typeCurrent transformerResolution of the analog inputs10 BitInput circuit typeStandardNumber of analog outputs0Linear analog output typeNoneResolution of the analog outputs0 BitConversion time10 ms/unitSignal processingFree runningIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)70 g
| Feature Name | Feature Value |
|---|---|
| Type of output voltage (EF008222) | DC |
| Degree of protection (IP) (EF005474) | IP20 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of digital output (EF003601) | Transistor |
| Type of electric connection (EF003961) | Spring clamp connection |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Analogue inputs configurable (EF008518) | Yes |
| Analogue input, thermocouple (EF003225) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Analogue input, voltage (EF003221) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Analogue outputs configurable (EF008519) | No |
| Analogue input, current (EF003219) | Yes |
| Analogue output signal configurable (EF003236) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Short-circuit protection, digital outputs available (EF003320) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Digital inputs configurable (EF008516) | No |
| Digital outputs configurable (EF008520) | Yes |
| Supporting protocol for PROFIsafe (EF007526) | No |
| System accessory (EF004118) | Yes |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Analogue output, voltage (EF003235) | No |
| Analogue input, resistor (EF003222) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Analogue input signal configurable (EF003227) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| With optical interface (EF003028) | No |
| Analogue output, current (EF003234) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Analogue input, resistor temperature (EF003224) | No |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 12 mm |
| Number of digital inputs (EF001992) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Depth (EF000049) | 80 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of analogue inputs (EF001994) | 4 |
| Input current at signal 1 (EF001428) | 125 mA |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of digital outputs (EF001993) | 4 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Resolution of the analogue outputs (EF003577) | 0 Bit |
| Number of analogue outputs (EF001995) | 0 |
| Resolution of the analogue inputs (EF003575) | 10 Bit |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Height (EF000040) | 100 mm |
| Output current at digital output (EF003218) | 0.1 A |
| Time delay at signal change (EF002382) | 10 ms |
| Supply voltage DC (EF007534) | 20.4 V |
| Output voltage at digital output (EF003215) | 12 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| NX-HB3201 NXHB3201 NX020123R EN_NX-HB3201.pdf | 5 Mbytes |
|
| NX-HB3201 NXHB3201 NX020123R panel_building_brochure_en.pdf | 3 Mbytes |
|
