OMRONIntegrated AutomationMACHINE I/O NX-SERIESNX-EC0142 NX020173E NXEC0142,1 OMRON NX Unit 1 Input Encoder Line Driver PNP Incremental

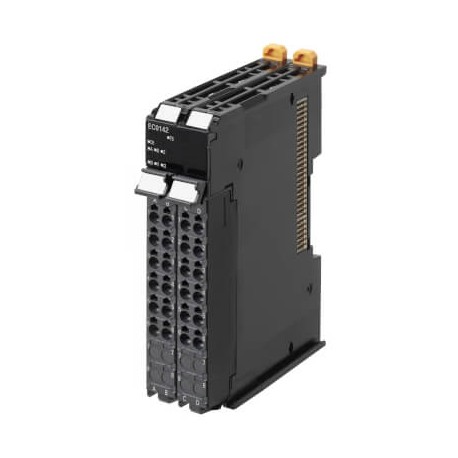

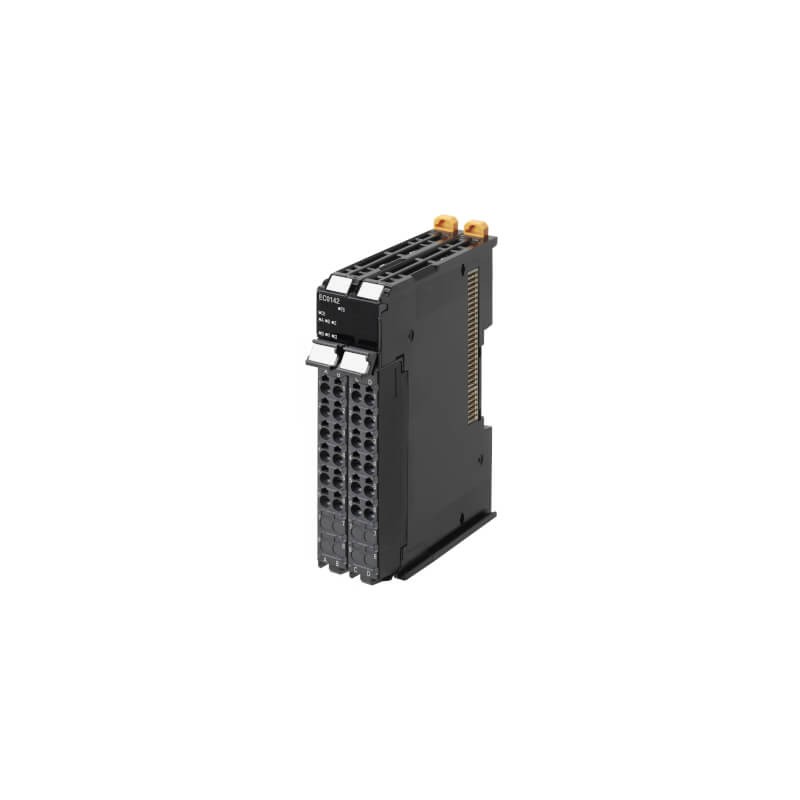

OMRON NX-EC0142 NX020173E NXEC0142,1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

NX-EC0142 NX020173E NXEC0142,1 OMRON NX Unit 1 Input Encoder Line Driver PNP Incremental

Reference: NX-EC0142

Code: NX020173E

Catalog Number: NXEC0142,1

Manufacturer: OMRON

Description:

NX Unit - 1 Input Encoder Line Driver PNP Incremental
1 x Incremental Encoder Line driver Input, phases A and B: single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, PNP, screwless push-in connectors, 24 mm wide

Categories:

  • OMRON > Integrated Automation > Machine I/O NX-series

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

I/O systemNX I/O BusType of moduleEncoder inputDigital input typeIncremental encoder, Line driver (RS-422), PNPDigital output typeNoneSignal processingFree running, Synchronous, Task period prioritizedNumber of encoder input channels1Max. encoder input frequency4000 kHzNumber of pulse output channels0Max. pulse output frequency0 kHzIO-Link masterI/O connection typePush-inNumber of I/O connectors2Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneNumber of IOV (V+) terminals3Number of IOG (V-) terminals3Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)24 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)147 g

DATASHEET - PDF

Title
Size
Type
NX-EC0142 NXEC0142,1 NX020173E EN_NX-EC0142.pdf
7 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
