OMRONIntegrated AutomationMACHINE CONTROLLERS NJ5NJ101-1000 NX010043B NJ1011000 OMRON NJ101 Machine Controller, 2 Axes

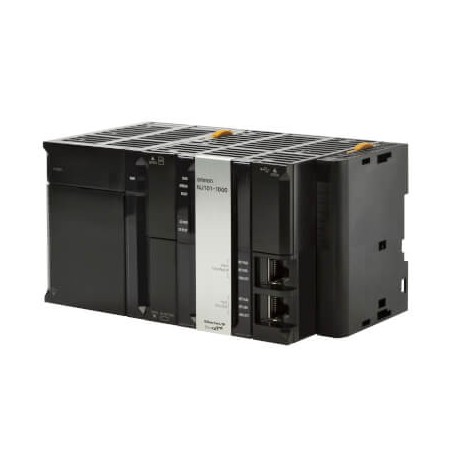

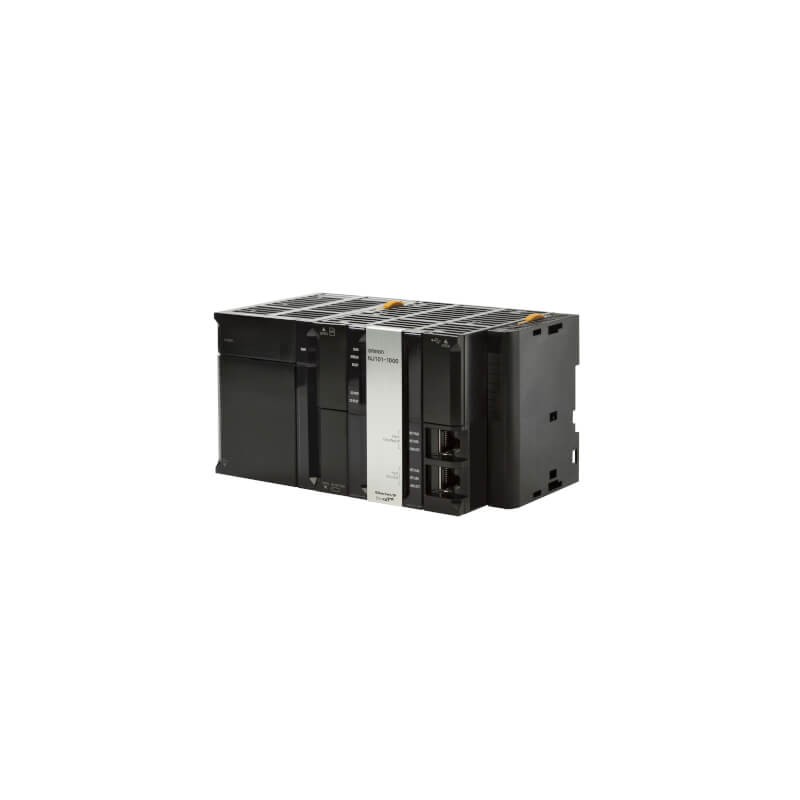

OMRON NJ101-1000 NX010043B NJ1011000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

NJ101-1000 NX010043B NJ1011000 OMRON NJ101 Machine Controller, 2 Axes

Reference: NJ101-1000

Code: NX010043B

Catalog Number: NJ1011000

Manufacturer: OMRON

Description:

NJ101 Machine Controller, 2 Axes
Sysmac NJ1 CPU, 3MB memory, built-in EtherCAT (2 servo axes, in total 64 EtherCAT nodes) and EtherNet/IP

Categories:

  • PLC's > PLC CPU-module
  • OMRON > Integrated Automation > Machine Controllers NJ5

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 3.462,58 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Controller functionalityMotion control, Sequence controlMax. number of synchronous axes2Max. number of axes (incl. virtual)6Primary task cycle time1 msProgram memory3 MBVariables memory0.5 MBCommunication port(s)EtherCAT Master, EtherNet/IP, USBCommunication option(s)CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485Max. number of remote I/O nodes64I/O systemCJ I/O BusMax. number of expansion units40Product Weight (unpacked)627 g

ETIM for 413717 PLC's (EC000236)

Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueLevel a
Feature nameModel (EF000010)
Feature valueModular
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueDC
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameType of memory (EF002996)
Feature valueFLASH
Feature nameRadio standard UMTS (EF008525)
Feature valueNo
Feature nameSupporting protocol for EtherCAT (EF017564)
Feature valueYes
Feature nameAppendant operation agent (Ex ib) (EF004142)
Feature valueNo
Feature nameSupporting protocol for other bus systems (EF003062)
Feature valueYes
Feature nameSupporting protocol for SERCOS (EF006657)
Feature valueNo
Feature nameIO link master (EF007298)
Feature valueNo
Feature nameRack-assembly possible (EF007018)
Feature valueNo
Feature nameSupporting protocol for KNX (EF003055)
Feature valueNo
Feature nameSupporting protocol for LON (EF003017)
Feature valueNo
Feature nameSupporting protocol for SUCONET (EF003060)
Feature valueNo
Feature nameSupporting protocol for IEC 60870 (EF016069)
Feature valueNo
Feature nameSupporting protocol for EtherNet/IP (EF007521)
Feature valueYes
Feature nameSupporting protocol for DNP3 (EF016068)
Feature valueNo
Feature nameRadio standard GSM (EF008524)
Feature valueNo
Feature nameSupporting protocol for INTERBUS (EF003054)
Feature valueNo
Feature nameSupporting protocol for Data-Highway (EF003058)
Feature valueNo
Feature nameSupporting protocol for PROFINET IO (EF007525)
Feature valueNo
Feature nameSupporting protocol for DeviceNet (EF003059)
Feature valueNo
Feature nameSupporting protocol for IEC 61850 Ethernet (EF015389)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameSupporting protocol for INTERBUS-Safety (EF006662)
Feature valueNo
Feature nameSupporting protocol for PROFIsafe (EF007526)
Feature valueNo
Feature nameSystem accessory (EF004118)
Feature valueNo
Feature nameCertified for UL hazardous location class III (EF017627)
Feature valueNo
Feature nameSupporting protocol for PROFIBUS (EF003052)
Feature valueNo
Feature nameRadio standard GPRS (EF008523)
Feature valueNo
Feature nameCertified for UL hazardous location class II (EF017625)
Feature valueNo
Feature nameCertified for UL hazardous location class I (EF017622)
Feature valueNo
Feature nameSupporting protocol for DeviceNet Safety (EF007520)
Feature valueNo
Feature nameSupporting protocol for TCP/IP (EF003050)
Feature valueYes
Feature nameWall mounting/direct mounting (EF007020)
Feature valueNo
Feature nameFront built-in possible (EF007016)
Feature valueNo
Feature nameSupporting protocol for Foundation Fieldbus (EF007522)
Feature valueNo
Feature nameAdditional program memory possible (EF003029)
Feature valueYes
Feature nameSupporting protocol for SafetyBUS p (EF007527)
Feature valueNo
Feature nameAppendant operation agent (Ex ia) (EF004141)
Feature valueNo
Feature nameSupporting protocol for Modbus (EF003057)
Feature valueNo
Feature nameRedundancy (EF003156)
Feature valueNo
Feature nameCertified for UL hazardous location group G (non-conductive dusts) (EF017639)
Feature valueNo
Feature nameSupporting protocol for PROFINET CBA (EF007524)
Feature valueNo
Feature nameCertified for UL hazardous location group F (carbonaceous dusts) (EF017638)
Feature valueNo
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameCertified for UL hazardous location group E (metal dusts) (EF017637)
Feature valueNo
Feature nameWith optical interface (EF003028)
Feature valueNo
Feature nameWith display (EF000458)
Feature valueNo
Feature nameSupporting protocol for CAN (EF003053)
Feature valueNo
Feature nameSupporting protocol for AS-Interface Safety at Work (EF007519)
Feature valueNo
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameCertified for UL hazardous location group A (acetylene) (EF017632)
Feature valueNo
Feature nameCertified for UL hazardous location division 2 (EF017629)
Feature valueNo
Feature nameCertified for UL hazardous location division 1 (EF017628)
Feature valueNo
Feature nameCertified for UL hazardous location group D (propane) (EF017636)
Feature valueNo
Feature nameSupporting protocol for ASI (EF003051)
Feature valueNo
Feature nameCertified for UL hazardous location group C (ethylene) (EF017635)
Feature valueNo
Feature nameCertified for UL hazardous location group B (hydrogen) (EF017633)
Feature valueNo
Feature nameNumber of HW-interfaces other (EF003027)
Feature value1
Feature nameMemory size (EF002997)
Feature value3072 kByte
Feature nameNumber of interfaces PROFINET (EF006932)
Feature value0
Feature nameNumber of relay outputs (EF007348)
Feature value0
Feature nameNumber of HW-interfaces USB (EF003025)
Feature value1
Feature nameWidth (EF000008)
Feature value90 mm
Feature nameNumber of digital inputs (EF001992)
Feature value0
Feature nameDepth (EF000049)
Feature value90 mm
Feature nameNumber of HW-interfaces wireless (EF006933)
Feature value0
Feature nameNumber of analogue inputs (EF001994)
Feature value0
Feature nameNumber of HW-interfaces parallel (EF003026)
Feature value0
Feature nameNumber of digital outputs (EF001993)
Feature value0
Feature nameNumber of HW-interfaces industrial Ethernet (EF003020)
Feature value2
Feature nameNumber of analogue outputs (EF001995)
Feature value0
Feature nameNumber of HW-interfaces RS-232 (EF003021)
Feature value0
Feature nameNumber of HW-interfaces RS-422 (EF003022)
Feature value0
Feature nameProcessing time (1K, binary operation) (EF003004)
Feature value0.0033 ms
Feature nameNumber of HW-interfaces RS-485 (EF003023)
Feature value0
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameMax. number of time switches (EF007349)
Feature value0
Feature nameSupply voltage AC 60 Hz (EF007533)
Feature value85 V
Feature nameSupply voltage DC (EF007534)
Feature value5 V
Feature nameSupply voltage AC 50 Hz (EF007532)
Feature value85 V

DATASHEET - PDF

Title
Size
Type
NJ101-1000 NJ1011000 NX010043B ES_NJ101-1020.pdf
6 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
