OMRONProximity SensorsE2BE2B-M12LS02-WP-B2 2M E2B 2110E E2BM12LS02WPB22MOMI OMRON Inductive M12 Long, Flush 2mm 3h PNP NC Cable 2m Li..

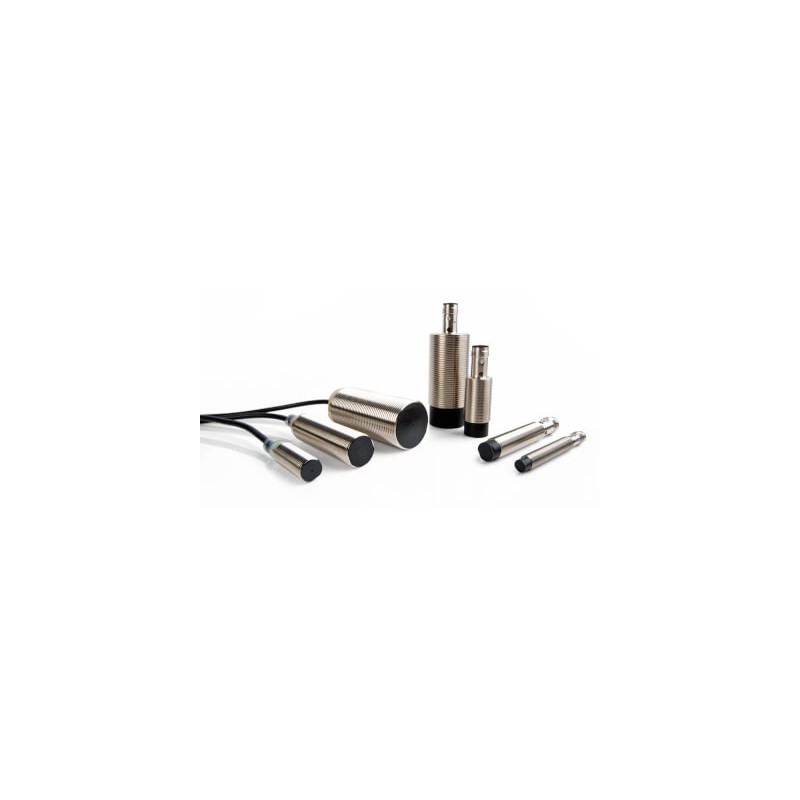

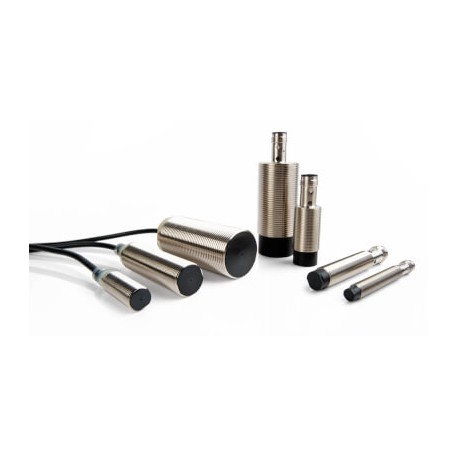

OMRON E2B-M12LS02-WP-B2 2M E2B 2110E E2BM12LS02WPB22MOMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

E2B-M12LS02-WP-B2 2M E2B 2110E E2BM12LS02WPB22MOMI OMRON Inductive M12 Long, Flush 2mm 3h PNP NC Cable 2m Li..

Reference: E2B-M12LS02-WP-B2 2M

Code: E2B 2110E

Catalog Number: E2BM12LS02WPB22MOMI

Manufacturer: OMRON

Description:

Inductive M12 Long, Flush 2mm 3h PNP NC Cable 2m Lite
Inductive M12 Long Flush 2mm 3h PNP NC Cable 2m Lite
Proximity sensor, inductive, nickel-brass, long body, M12, shielded, 2 mm, DC, 3-wire, PNP-NC, 2 m cable

Categories:

  • Sensors > Inductive proximity switch
  • OMRON > Proximity Sensors > E2B

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 33,45 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Features

The ideal solution for standard industrial environments

Thanks to the simple construction and Omron’s innovative “hot melt” production process, the E2B sensors embody two characteristics: value-for-money and high reliability.

  • All-round-visible indicator
  • The laser printed part number
  • Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)
  • Operating temperature: -25°C to 70°C
  • Water resistance: IP67

Ordering information

Pre-wired

Size



Sensing distance

Output configuration

Order code (for pre-wired types with 2 m PVC cable)

Operation mode NO

Operation mode NC

M8

⬛

−

2.0 mm

PNP1

E2B-S08KS02-WP-B1 2M2

E2B-S08KS02-WP-B2 2M2

−

⬛

4.0 mm

PNP1

E2B-S08KN04-WP-B1 2M2

E2B-S08KN04-WP-B2 2M2

M12

⬛

−

4.0 mm

PNP1

E2B-M12KS04-WP-B1 2M

E2B-M12KS04-WP-B2 2M

−

⬛

8.0 mm

PNP1

E2B-M12KN08-WP-B1 2M

E2B-M12KN08-WP-B2 2M

M18

⬛

−

8.0 mm

PNP1

E2B-M18KS08-WP-B1 2M

E2B-M18KS08-WP-B2 2M

−

⬛

16.0 mm

PNP1

E2B-M18KN16-WP-B1 2M

E2B-M18KN16-WP-B2 2M

M30

⬛

−

15.0 mm

PNP1

E2B-M30KS15-WP-B1 2M

E2B-M30KS15-WP-B2 2M

−

⬛

30.0 mm

PNP1

E2B-M30LN30-WP-B1 2M

E2B-M30LN30-WP-B2 2M

Connector types

Size



Sensing distance

Output configuration

Order code

Operation mode NO

Operation mode NC

M8

⬛

−

2.0 mm

PNP1

E2B-S08KS02-MC-B12

E2B-S08KS02-MC-B22

−

⬛

4.0 mm

PNP1

E2B-S08KN04-MC-B12

E2B-S08KN04-MC-B22

M12

⬛

−

4.0 mm

PNP1

E2B-M12KS04-M1-B1

E2B-M12KS04-M1-B2

−

⬛

8.0 mm

PNP1

E2B-M12KN08-M1-B1

E2B-M12KN08-M1-B2

M18

⬛

−

8.0 mm

PNP1

E2B-M18KS08-M1-B1

E2B-M18KS08-M1-B2

−

⬛

16.0 mm

PNP1

E2B-M18KN16-M1-B1

E2B-M18KN16-M1-B2

M30

⬛

−

15.0 mm

PNP1

E2B-M30KS15-M1-B1

E2B-M30KS15-M1-B2

−

⬛

30.0 mm

PNP1

E2B-M30LN30-M1-B1

E2B-M30LN30-M1-B2

Optional features

Refer to complete datasheet or contact your OMRON representative for the below optional features

Sensing module and body

−Single sensing distance (ideal for compatibility with previous machine generations)

−Long body (ideal for mounting through thicker constructions)

Connection

−M8 3-pin -MC e.g. E2B-S08KS02-MC-B1

Output

−200 mA max. load current

Specifications

(Exemplary for shielded versions.)

Item

M8

M12

M18

M30

E2B-S08KS

E2B-M12KS

E2B-M18KS

E2B-M30KS

Sensing distance

2 mm±10%

4 mm±10%

8 mm±10%

15 mm±10%

Response frequency

1,500 Hz

1,000 Hz

500 Hz

250 Hz

Power supply voltage
(operating voltage)

12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)

Protective circuits

Output reverse polarity protection, Power source circuit reverse polarity protection

Ambient temperature

Operating and storage

−25 to 70°C

Degree of protection

IP67 after IEC 60529

Material

Case

Stainless steel

Brass-nickel plated

Sensing surface

PBT

1.NPN models are available. For ordering replace “-B1” or “-B2” by “-C1” or “-C2”.
2.M8 sized housings are only available in stainless steel (SUS 303).

ETIM for 674603 Sensors (EC002714)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameType of interface for safety communication (EF003956)
Feature valueNone
Feature nameType of actuation (EF006949)
Feature valueMetallic Target
Feature nameType of switch function (EF003963)
Feature valueBreaker contact
Feature nameType of electric connection (EF003961)
Feature valueCable
Feature nameType of interface (EF006977)
Feature valueNone
Feature nameType of switching output (EF003962)
Feature valuePNP
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameNumber of protected contact energized outputs (EF003952)
Feature value0
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value0
Feature nameDiameter sensor (EF007111)
Feature value12 mm
Feature nameSwitching distance (EF003647)
Feature value2 mm
Feature nameLength of sensor (EF007334)
Feature value70 mm
Feature nameSwitching frequency (EF003587)
Feature value1000 Hz
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameSupply voltage (EF004127)
Feature value10 V
