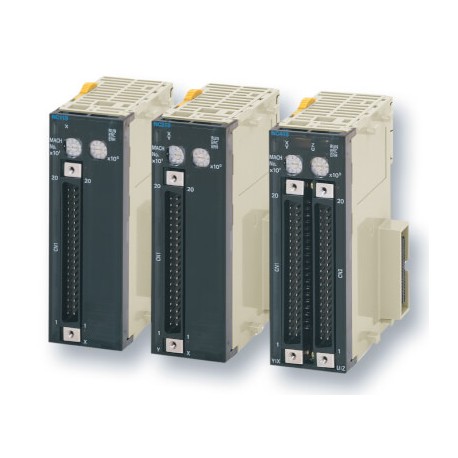

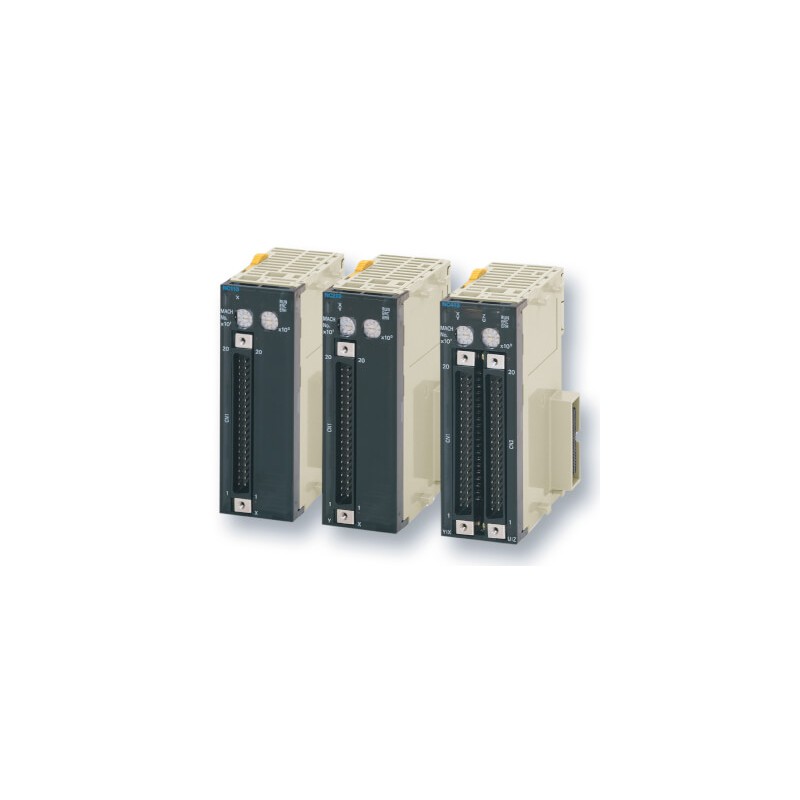

CJ1W-NC433 CJ1W0318C CJ1WNC433,1 OMRON Module positioner 4-axis LINE DRIVER 500KHz CJ1
CJ1W-NC433
CJ1W0318C
CJ1WNC433.1
OMRON
Module positioner 4-axis LINE DRIVER 500KHz CJ1
4-axis positioner module LINE DRIVER 500KHz CJ1
Position control unit, 4 axes, line driver pulse string output, 500kHz
PLC's > PLC function/technology module
Motion Control > PLC based Motion Control
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲1, 2 or 4-axis point-to-point positioning controller with pulse train output
The NC motion controllers support positioning control via pulse-train outputs. Positioning is performed using trapezoidal or S-curve acceleration and deceleration. Ideal for controlling simple positioning in stepper motors and servos with pulse-train input.
- Positioning can be done by direct ladder commands
- Position and speed control
- Linear interpolation
- Interrupt feeding function
- Positioning of 100 points done from memory
- Positioning data is saved in internal flash memory, eliminating the need to maintain a backup battery.

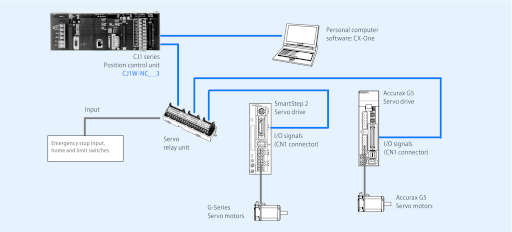

Position control unit
Servo drive cables
Note:Refer the selected servo systems section for cable and servo relay units information.
Computer software
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| SIL according to IEC 61508 (EF009889) | None |
| Explosion safety category for gas (EF003997) | None |
| Suitable for counting (EF003248) | No |
| Suitable for welding control (EF003251) | No |
| Suitable for multi-axis positioning (EF003267) | No |
| Suitable for flux measurement (EF003261) | No |
| Suitable for weighing (EF003249) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Suitable for incremental data detection (EF003258) | No |
| Suitable for cam controller (EF003263) | No |
| Suitable for SSI (EF003254) | No |
| Suitable for CNC (EF003256) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Suitable for NC (EF003253) | No |
| Suitable for detection absolute value (EF003259) | No |
| Suitable for flying saw (EF003264) | No |
| Redundancy (EF003156) | No |
| Suitable for path controller (EF003262) | No |
| Suitable for safety functions (EF001597) | No |
| Suitable for single-axis controller (EF003266) | Yes |
| Suitable for flux controller (EF003260) | No |
| Suitable for multi-axis control (EF003265) | No |
| Suitable for single-axis positioning (EF003268) | Yes |
| Suitable for pressure control (EF003252) | No |
| Suitable for temperature control (EF008344) | No |
| Suitable for electronic positioning (EF003255) | Yes |
| Width (EF000008) | 31 mm |
| Height (EF000040) | 90 mm |
| Number of functions (EF003244) | 25 |
| Depth (EF000049) | 66.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| CJ1W-NC433 CJ1WNC433.1 CJ1W0318C i04e_cj1w_nc_3_position_control_unit_datasheet_en.pdf | 170 Kbytes |
|
