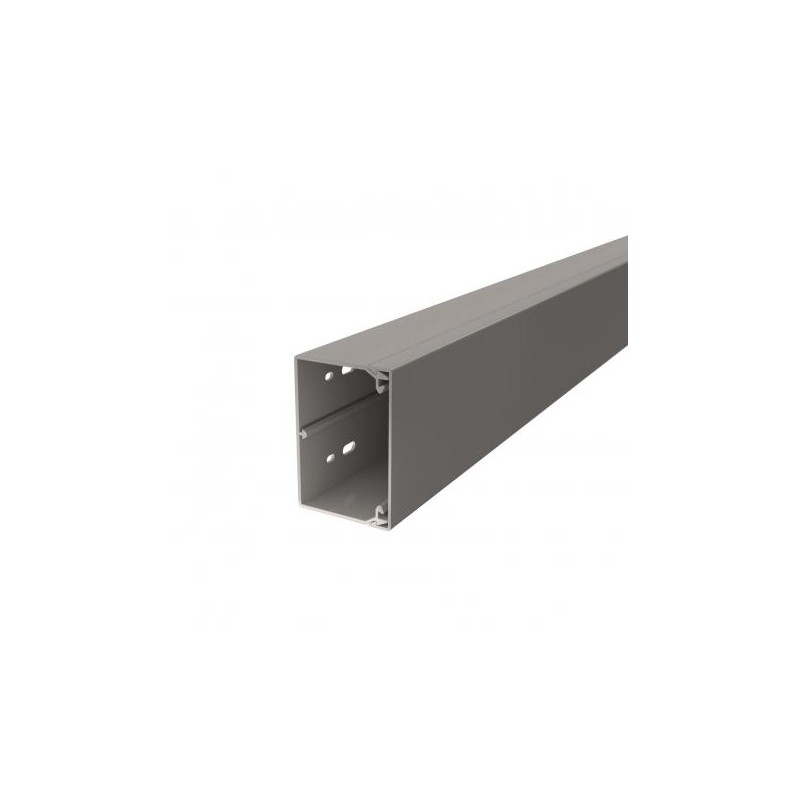

WDK60090GR 6022006 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDK60090GR
WDK60090GR
6022006
OBO BETTERMANN
24 m.
CHANNEL FOR WALL AND CEILING WDK60090GR
Wall and ceiling channel with perforations at the base 60x90x2000 stone grey 7030 Polyvinyl chloride, PVC
Trunking, type WDK 60090. Trunking cover and base with base perforation.Four cover fixing devices included.Lid clamp can be moved along the entire length of the trunking.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,9755 kg CO2e / 1 Meter |
| Colour | Stone grey; RAL 7030 |
| Delivery on a roll | no |
| Dimension | 60x90x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | no |
| Height | 60 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Polyvinylchloride |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 24 |
|---|---|
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 20 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 18 |
| Number of insertable partitions | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK04 |
| Protective film | no |
| Usable cross-section | 4236 mm² |
| Version, cable trunking cover | Loose |
| Width | 90 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 90 mm |
| Length (EF001438) | 2000 mm |
| Useful cross section (EF005140) | 4236 mm² |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Anti-bacterial treatment (EF023790) | No |
| Suitable for circuit integrity (EF007806) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7030 |
| Number of permanent partitions (EF004408) | 0 |
| Number of plug-in partitions (EF004438) | 1 |
| Type of fastening (EF002442) | Bottom perforation |
| Cover model (EF009212) | Loose |
| With cable fixing clip (EF004815) | Yes |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Delivery on roll (EF005957) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Impact strength (EF004293) | IK04 |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
