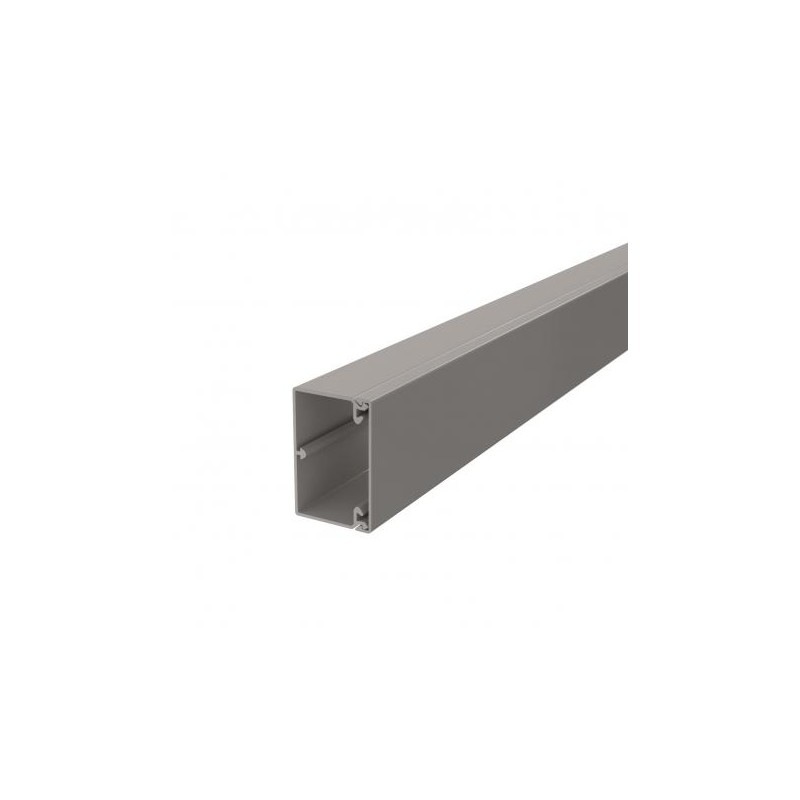

WDK40060GR 6025633 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDK40060GR
WDK40060GR
6025633
OBO BETTERMANN
32 m.
CHANNEL FOR WALL AND CEILING WDK40060GR
Channel for wall and ceiling with perforations in the base 40x60x2000 gray stone 7030 Polyvinyl chloride, PVC
Trunking, type WDK 40060. Trunking cover and base with base perforation.Four cover fixing devices included.Lid clamp can be moved along the entire length of the trunking.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1519 kg CO2e / 1 Meter |
| Colour | Stone grey; RAL 7030 |
| Delivery on a roll | no |
| Dimension | 40x60x2000 |
| Duct connector | yes |
| Fastening type | Base perforation |
| Halogen-free | no |
| Height | 40 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Polyvinylchloride |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 10 |
|---|---|
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 8 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 7 |
| Number of insertable partitions | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK04 |
| Protective film | no |
| Usable cross-section | 1775 mm² |
| Version, cable trunking cover | Loose |
| Width | 60 mm |
