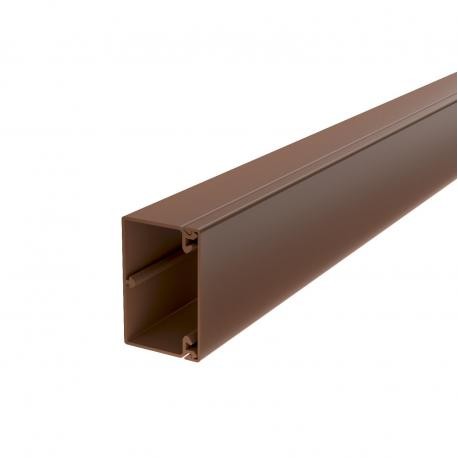

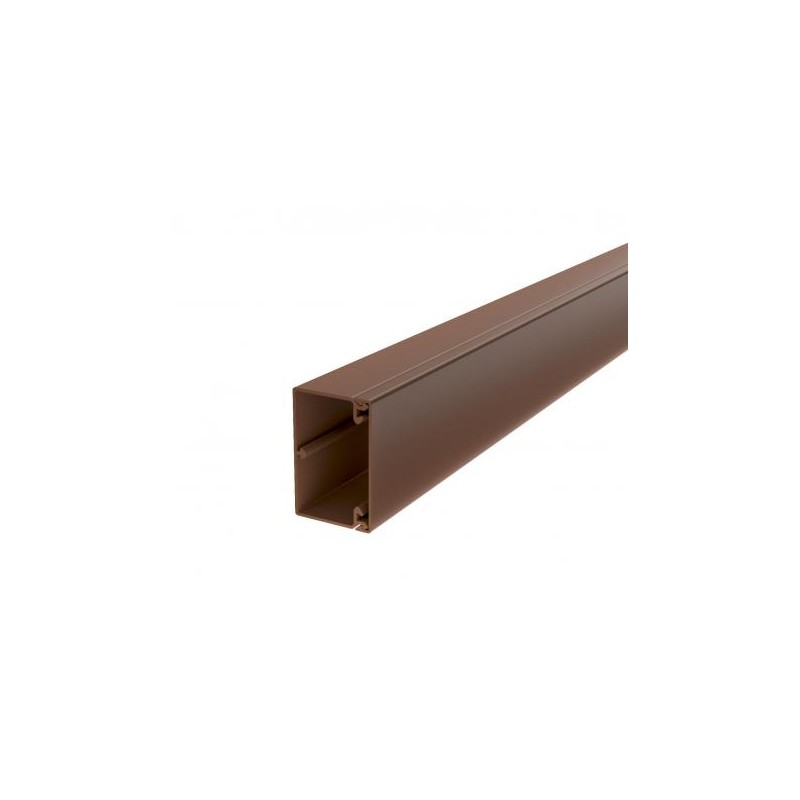

WDK40060BR 6025617 OBO BETTERMANN CHANNEL FOR WALL AND CEILING WDK40060BR
WDK40060BR
6025617
OBO BETTERMANN
32 m.
CHANNEL FOR WALL AND CEILING WDK40060BR
Wall and ceiling channel with perforations at the base 40x60x2000 brown cuttlefish 8014 Polyvinyl chloride, PVC
Trunking, type WDK 40060. Trunking cover and base with base perforation.Four cover fixing devices included.Lid clamp can be moved along the entire length of the trunking.
Installation ducts for wall and ceiling > Mini/Maxi trunking
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1655 kg CO2e / 1 Meter |
| Colour | Sepia brown; RAL 8014 |
| Delivery on a roll | no |
| Dimension | 40x60x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | no |
| Height | 40 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Polyvinylchloride |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 10 |
|---|---|
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 8 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 7 |
| Number of insertable partitions | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK04 |
| Protective film | no |
| Usable cross-section | 1775 mm² |
| Version, cable trunking cover | Loose |
| Width | 60 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 40 mm |
| Width (EF000008) | 60 mm |
| Length (EF001438) | 2000 mm |
| Useful cross section (EF005140) | 1775 mm² |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Anti-bacterial treatment (EF023790) | No |
| Suitable for circuit integrity (EF007806) | No |
| Colour (EF000007) | Brown |
| RAL-number (EF000116) | 8014 |
| Number of permanent partitions (EF004408) | 0 |
| Number of plug-in partitions (EF004438) | 1 |
| Type of fastening (EF002442) | Bottom perforation |
| Cover model (EF009212) | Loose |
| With cable fixing clip (EF004815) | Yes |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Delivery on roll (EF005957) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Impact strength (EF004293) | IK04 |
| Operating temperature (EF001742) | -5 °C |
