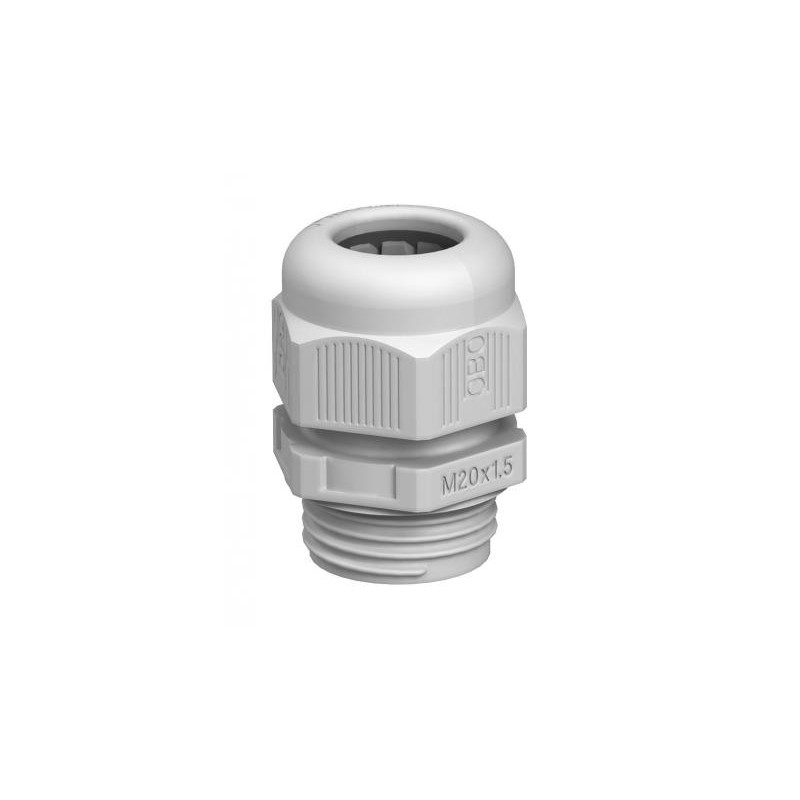

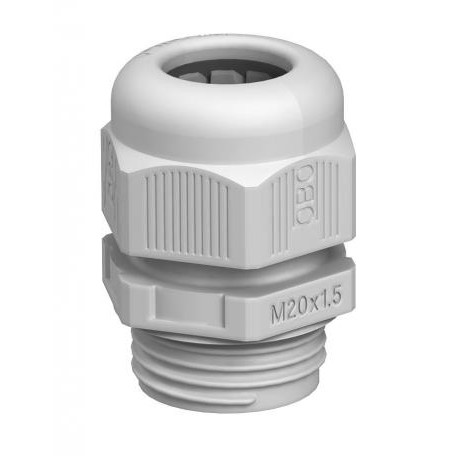

V-TEC VM20 SGR 2022847 OBO BETTERMANN CABLE GLAND V-TEC VM20 SGR
V-TEC VM20 SGR
2022847
OBO BETTERMANN
50
CABLE GLAND V-TEC VM20 SGR
V-TEC VM20 SGR cable gland, total metric M20 Polyamide, PA,
Cap nut cable gland, metric thread, silver grey. The quickest and most convenient way of providing strain relief and tightness with cable glands on junction boxes and housings is with the tried-and-trusted V-TEC VM cable glands from OBO. With the integrated sealing lip and the special OBO lamella technology, protection class IP68 is achieved. Strain relief and tightness have been tested to DIN EN 62444.The connecting threads of the cable glands are metric or PG and are therefore suitable for universal use. Once screwed in place, the installation is there forever, as the optimum thread adjustment with the right pitch ensures permanent resistance to shaking.Applications: From private housing with junction boxes up to industrial applications in the distributor cabinet.Temperature range: –20
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0402 kg CO2e / 1 Piece |
| Colour | Silver grey; RAL 7001 |
| Dimension | M20 |
| Dimension E | 27 mm |
| Dimension L max. | 30,5 mm |
| Dimension L min. | 23,5 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 6 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Hexagonal corner dimension | 27 mm |
| Impact-resistant | no |
| Material | Polyamide |
|---|---|
| Nominal thread size | 20 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 13 mm |
| Sealing area D, min. | 6 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Thread | M20 x 1,5 |
| Thread increase | 1,5 mm |
| Thread length | 9 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Unstable torque | 3,8 Nm |
| Version for | Straight |
| WAF | 24 |
| With locknut | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
