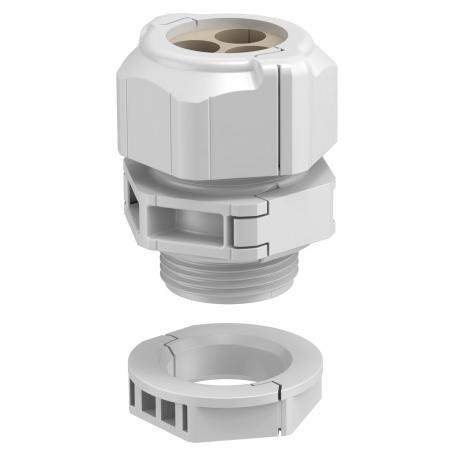

OBO BETTERMANN V-TEC TB32 4x8 2024990 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

V-TEC TB32 4x8 2024990 OBO BETTERMANN Glands, divisible Packing, multiple M32 light grey Polycarbonate, PC

Reference: V-TEC TB32 4x8

Code: 2024990

Manufacturer: OBO BETTERMANN

Description:

Glands, divisible Packing, multiple M32 light grey Polycarbonate, PC

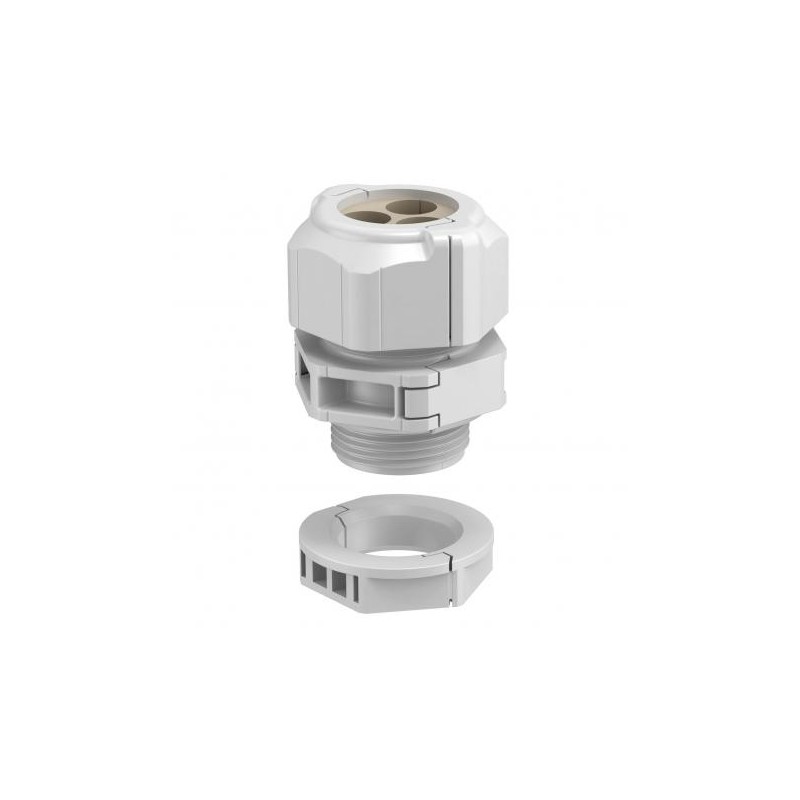

Separable cable gland, sealing insert, multiple, light grey. The splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.Further multiple sealing inserts upon request.

Categories:

  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 175,81 €

Unit Price: 35,163 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,3139 kg CO2e / 1 Piece
ColourLight grey
DimensionM32
Dimension D8 mm
Dimension E1 (mm)51,5 mm
Dimension E245 mm
Dimension GM32x1,5 mm
Dimension L41 mm
Dimension L max.41 mm
Dimension L min.32 mm
Dimension L114 mm
Dimension L210 mm
Dimension L312 mm
explosion-proofno
Fibre-glass reinforcedno
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Height53,5 mm
Hexagonal corner dimension45 mm
Impact-resistantyes
Length46 mm
MaterialPolycarbonate
Nominal thread size32
Number of drill holes4
Permitted temperature range, max.80 °C
Permitted temperature range, min.-20 °C
Protection ratingIP67
Sealing insert, multipleyes
Splittable glandyes
Strain relief optionno
ThreadM32 x 1,5
Thread increase1,5 mm
Thread length14 mm
Thread typeMetric
Type of sealSealing ring
Unstable torque8 Nm
Version forStraight
WAF 146 mm
WAF 240 mm
Width51,5 mm
With locknutyes

ETIM for 2024990 Cable glands and cable entry products (EC000441)

Feature nameThread type (EF001758)
Feature valueMetric
Feature nameNominal thread size metric/PG (EF007839)
Feature value32
Feature namePitch thread (EF003712)
Feature value1.5 mm
Feature nameThread length (EF000368)
Feature value14 mm
Feature nameHexagon angular dimension (EF005268)
Feature value45 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial quality (EF001257)
Feature valuePolycarbonate (PC)
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameShock resistant (EF000084)
Feature valueYes
Feature nameColour (EF000007)
Feature valueGrey
Feature nameBend radius protection/trumpet flare (EF000734)
Feature valueNo
Feature nameWith locknut (EF005049)
Feature valueYes
Feature nameModel (EF000010)
Feature valueStraight
Feature nameMulti seal area (EF005004)
Feature valueYes
Feature nameFlat cable coupling (EF004685)
Feature valueNo
Feature nameWith strain relief (EF000878)
Feature valueNo
Feature nameType of sealing (EF001217)
Feature valueEV009696
Feature nameSeparable screw gland (EF005337)
Feature valueYes
Feature nameOperating temperature (EF001742)
Feature value-20 °C
Feature nameExplosion-tested version (EF004191)
Feature valueNo
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
