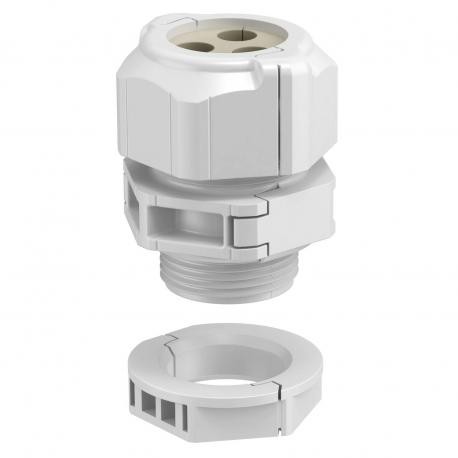

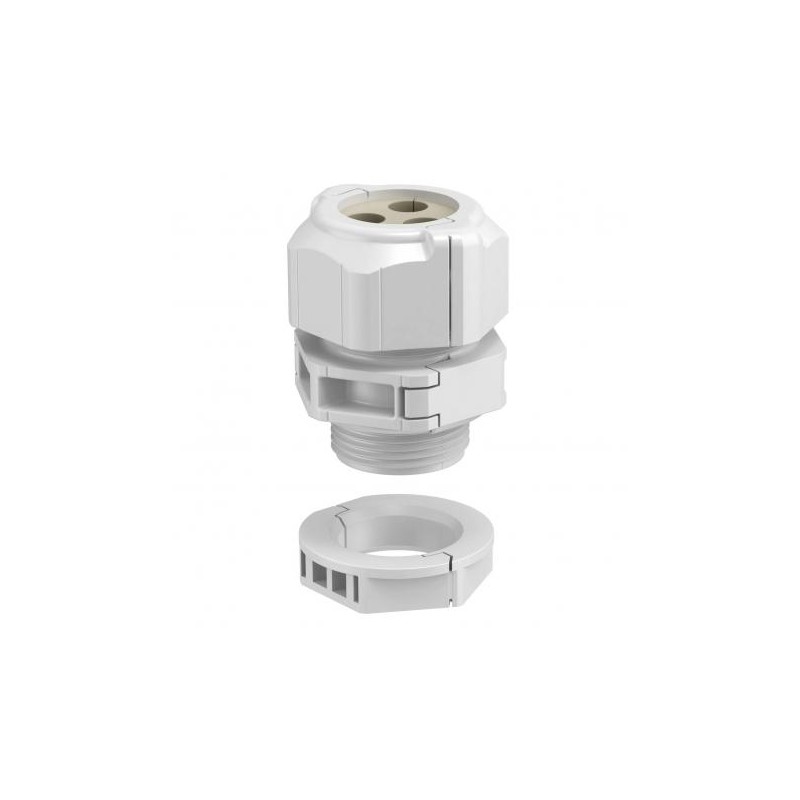

V-TEC TB20 2x4 2024950 OBO BETTERMANN Glands, divisible Packing, multiple M20 light grey Polycarbonate, PC
V-TEC TB20 2x4
2024950
OBO BETTERMANN
5
Glands, divisible Packing, multiple M20 light grey Polycarbonate, PC
Separable cable gland, sealing insert, multiple, light grey. The splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.Further multiple sealing inserts upon request.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1218 kg CO2e / 1 Piece |
| Colour | Light grey |
| Dimension | M20 |
| Dimension D | 4 mm |
| Dimension E1 (mm) | 33,5 mm |
| Dimension E2 | 30 mm |
| Dimension G | M20x1,5 mm |
| Dimension L | 30 mm |
| Dimension L max. | 30,5 mm |
| Dimension L min. | 24,5 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 8,5 mm |
| Dimension L3 | 8 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 40 mm |
| Hexagonal corner dimension | 30 mm |
|---|---|
| Impact-resistant | yes |
| Length | 30 mm |
| Material | Polycarbonate |
| Nominal thread size | 20 |
| Number of drill holes | 2 |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP67 |
| Sealing insert, multiple | yes |
| Splittable gland | yes |
| Strain relief option | no |
| Thread | M20 x 1,5 |
| Thread increase | 1,5 mm |
| Thread length | 10 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Unstable torque | 2 Nm |
| Version for | Straight |
| WAF 1 | 30 mm |
| WAF 2 | 27 mm |
| Width | 29 mm |
| With locknut | yes |
