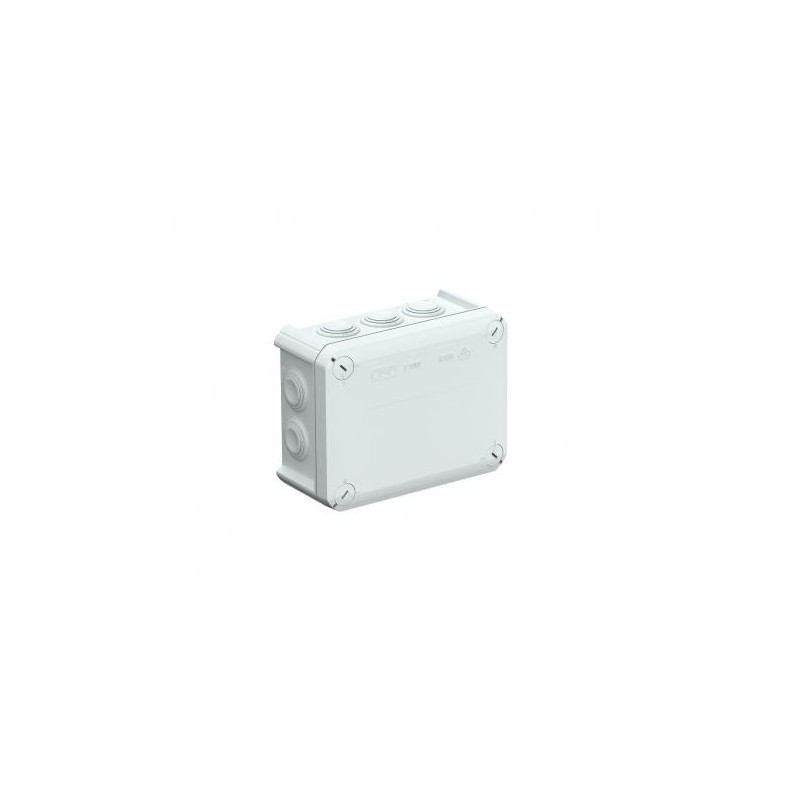

T 100 2007077 OBO BETTERMANN JUNCTION BOX T 100

Reference: T 100

Code: 2007077

Manufacturer: OBO BETTERMANN

Description:

JUNCTION BOX T 100
Junction box T 100, plug-in seal. Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials. Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.

Categories:

  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 5,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

All the T series junction boxes are UV-resistant. They are made of a thermoplastic polypropylene plastic with plug-in seals made of ethylene vinyl acetate (EVA). This plastic is soft, which means that it is malleable. This allows installation of cables through the 10 x M25 seals, or the seals can be cut with a knife at the pre-marked points, in order to create an insertion opening for cables or pipes. Alternatively, instead of seals, cable glands can be inserted through the openings and be countered internally with a locknut.


TypeT 100
ColourLight grey
Entries10 x M25
Dimension LxWxH mm150x116x67
Clear internal dimensions mm136x102x57
Pack. pcs1
Weight kg/100 pcs.16,270
Item No.2007077
