SVE 41 A2
1123126
OBO BETTERMANN
10
CONNECTOR PROFILES SVE 41 V2A

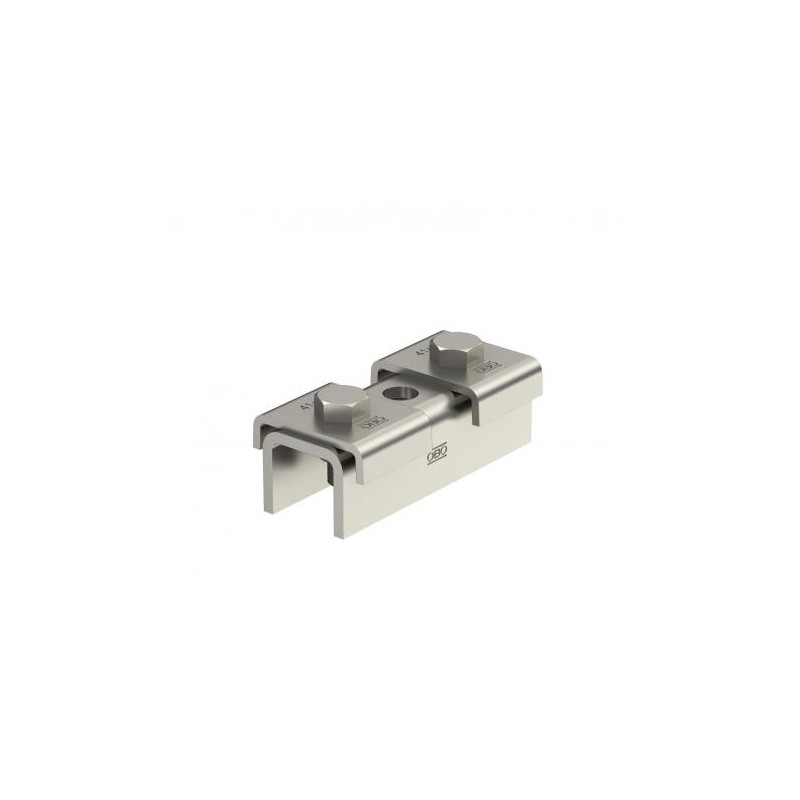

Rail connector SV with 3 holes A2. The rail connector is used to extend the mounting rail MS4141. The connection can be made simply and securely on the construction site or prefabricated in the workshop.There is a guarantee that there is no weak point in the area of the rail coupling. The static values of the mounting rail apply here.Scope of delivery:Retaining plates, type 4141, and suitable hexagonal bolts included loosely.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5997 kg CO2e / 1 Piece |
|---|---|
| Dimension | 100x4mm |
| Drill hole spacing, centre | 60 mm |
| Height | 39,4 mm |
| Hole size | 12 mm |
| Length | 100 mm |
| Material | Stainless steel 1.4301 |
| Material thickness | 4 mm |
| Profile shape | C profile |
| Rustproof steel, pickled | no |
| Slot width | 22 mm |
| Static value A | 2,97 cm² |
|---|---|
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Suitable for profile shapes | U profile |
| Surface | Bright, treated |
| Type of perforation | Perforated back |
| Version for | Perforated |
| Width | 47 mm |
| With screw accessories | yes |
| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
