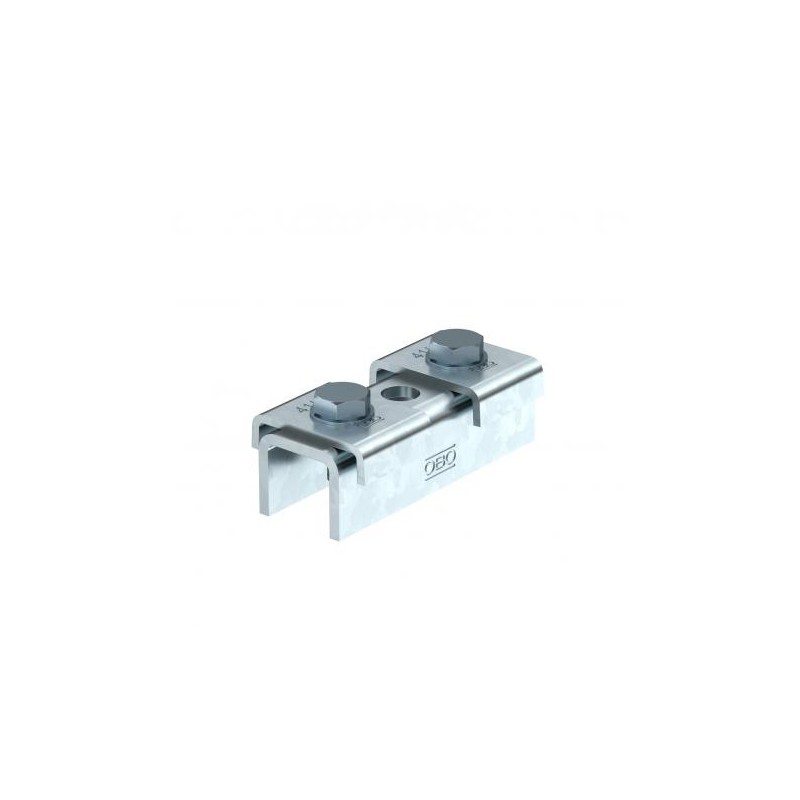

SVE 41 FT 1123121 OBO BETTERMANN CONNECTOR PROFILES SVE 41 FT
SVE 41 FT
1123121
OBO BETTERMANN
10
CONNECTOR PROFILES SVE 41 FT
SVE 41 FT profile connector, MS 41 profiles 100x4mm Steel, St, Hot dip galvanized, DIN EN ISO 1461
SVE 41 FT 1123121 Rail connector SV with 3 holes
Cable carrying systems > Coupler for support/profile rail
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Best sellers
▲More info
▲The rail connector is used to extend the mounting rail MS4141. The connection can be made simply and securely on the construction site or prefabricated in the workshop.
| Type | SVE 41 FT |
| Version | Perforated |
| Dimension W x H mm | 47x39,4 |
| Material thickness mm | 4 |
| Length mm | 100 |
| Pack. pcs | 10 |
| Weight kg/100 pcs. | 42,000 |
| Item No. | 1123121 |
| Feature Name | Feature Value |
|---|---|
| Suitable for (EF000073) | U-profile |
| Model (EF000010) | External coupler |
| With screw accessories (EF005067) | Yes |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Hot dip galvanized |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
