OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANNMS5030P3000FT 1121466 OBO BETTERMANN PROFILE CPS 5 L 3M FT

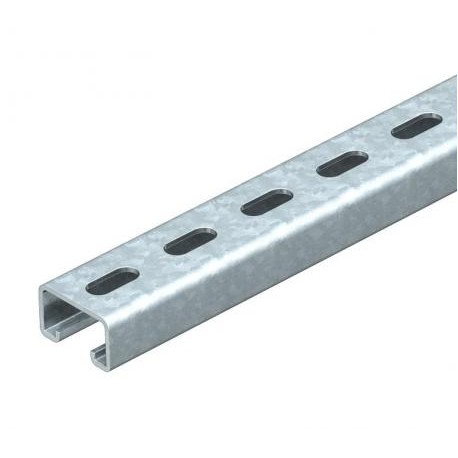

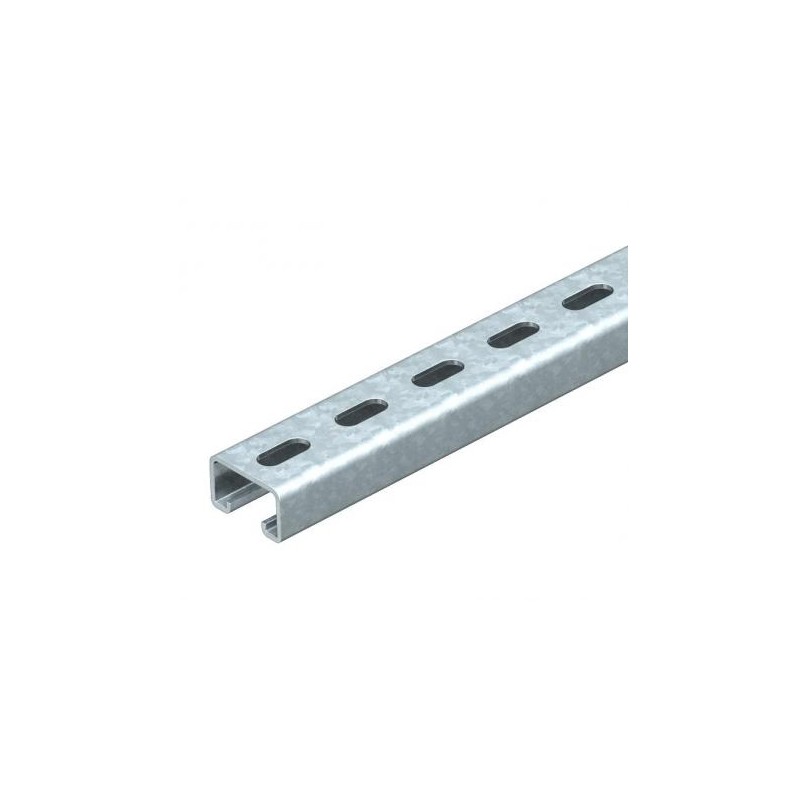

OBO BETTERMANN MS5030P3000FT 1121466 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MS5030P3000FT 1121466 OBO BETTERMANN PROFILE CPS 5 L 3M FT

Reference: MS5030P3000FT

Code: 1121466

Manufacturer: OBO BETTERMANN

Description:

PROFILE CPS 5 L 3M FT
Profile, drill, slot width 22mm, 3000x50x30, hot dip galvanized steel, DIN EN ISO 1461
MS5030 mounting rail, slot 22 mm, FT, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Categories:

  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 66,16 €

Unit Price: 22,054 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Breakableno
CO2 Footprint (GWP) Cradle-to-Gate6,0294 kg CO2e / 1 Meter
Dimension3000x50x30
Dimension L3000 mm
Drill hole spacing, centre50 mm
Height30 mm
Length3000 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness3 mm
Profile shapeC profile
Slot width22 mm
Static value A3,39 cm²
Static value ly3,99 cm⁴
Static value lz13,11 cm⁴
Static value Wy3,95 cm³
Static value Wz6,38 cm³
SurfaceHot-dip galvanised
Type of perforationPerforated back
Version forSingle profile
Width50 mm
With perforationyes
With toothingno
