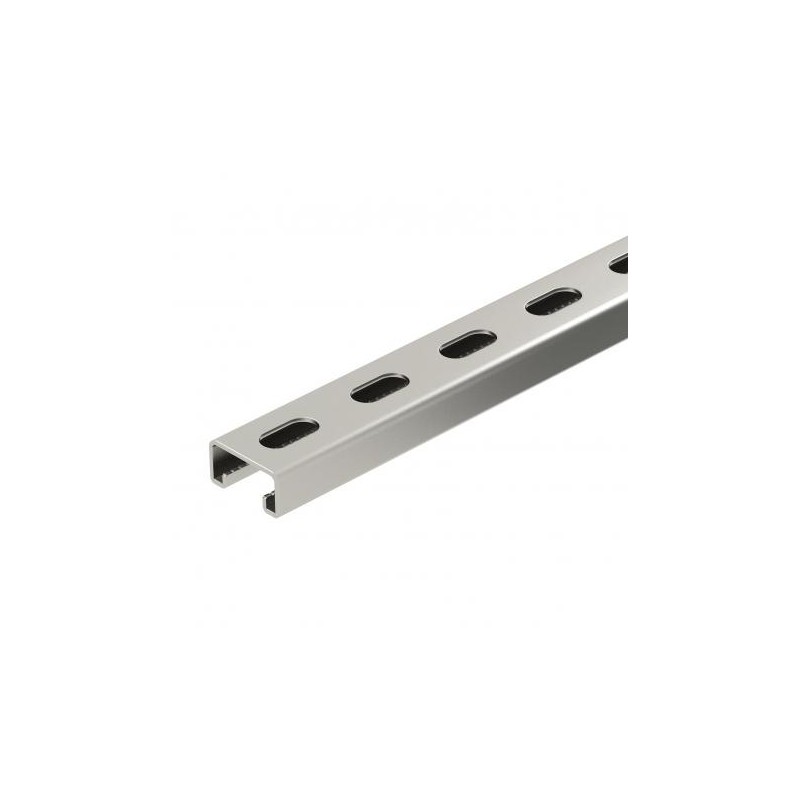

MS4121P2000A2 1122925 OBO BETTERMANN PROFILE, PERFORATED, SLIT WIDTH 22MM, MS4121P2000A2
MS4121P2000A2
1122925
OBO BETTERMANN
2 m.
PROFILE, PERFORATED, SLIT WIDTH 22MM, MS4121P2000A2
MS4121 mounting rail, slot 22 mm, A2, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 7,3593 kg CO2e / 1 Meter |
| Dimension | 2000x41x21 |
| Dimension L | 2000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 21 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 22 mm |
| Static value A | 1,65 cm² |
|---|---|
| Static value ly | 0,95 cm⁴ |
| Static value lz | 4,51 cm⁴ |
| Static value Wy | 0,89 cm³ |
| Static value Wz | 2,2 cm³ |
| Surface | Bright, treated |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 41 mm |
| With perforation | yes |
| With toothing | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
