OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANNMSL4141PP3000FT 1123003 OBO BETTERMANN PROFILE MS 41 LS 3M 2 FT
OBO BETTERMANN MSL4141PP3000FT 1123003 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

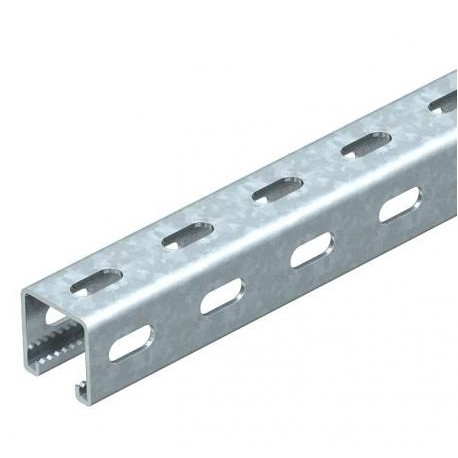

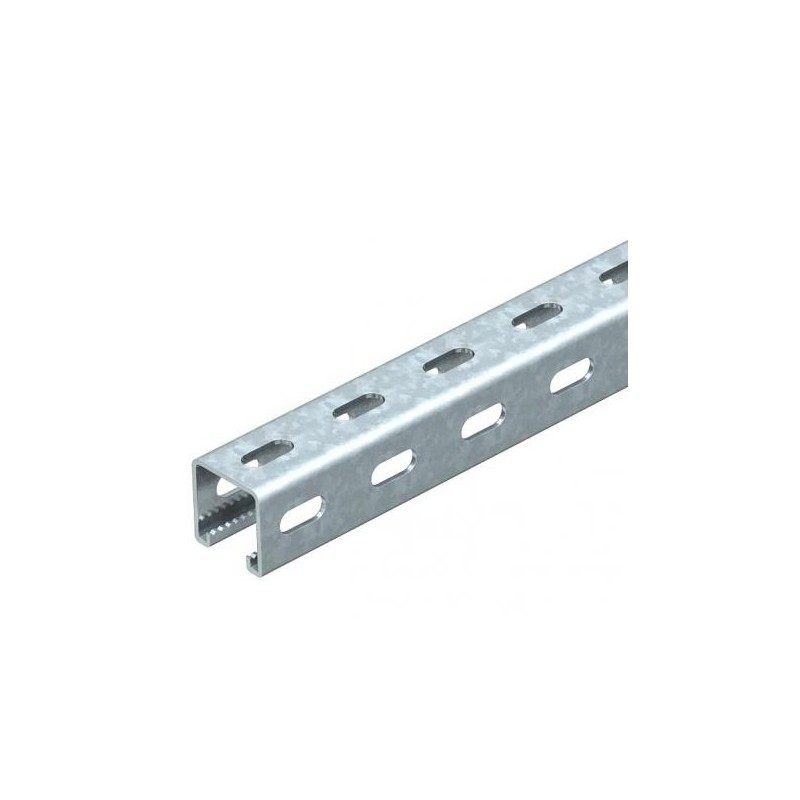

MSL4141PP3000FT 1123003 OBO BETTERMANN PROFILE MS 41 LS 3M 2 FT

Reference: MSL4141PP3000FT

Code: 1123003

Manufacturer: OBO BETTERMANN

Description:

PROFILE MS 41 LS 3M 2 FT
Profile MSL4141PP3000FT, perfor., groove width 22mm 3000x41x41 Steel, St, Hot dip galvanized, DIN EN ISO 1461
MS 41 LS 3M 2 FT 1123003 MS4141 mounting rail, slot width 22 mm, FS, side-perforated

Categories:

  • Fasteners > Mounting rail/-profile
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 48,75 €

Unit Price: 16,25 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.


TypeMSL4141PP3000FT
Length mm3000
Dimension W x H mm41x41
Material thickness mm2
Dimen- sion L mm3000
Pack. m3
Weight kg/100 m191,500

ETIM for 1123003 Fixings and fasteners (EC000386)

Feature nameLength (EF001438)
Feature value3000 mm
Feature nameWidth (EF000008)
Feature value41 mm
Feature nameHeight (EF000040)
Feature value41 mm
Feature nameMaterial thickness (EF000386)
Feature value2 mm
Feature nameProfile shape (EF005179)
Feature valueC-profile
Feature nameType of perforation (EF004147)
Feature value3 sides perforated
Feature nameWith toothing (EF000571)
Feature valueYes
Feature nameArea moment of inertia Iy (EF012513)
Feature value5.13 cm4
Feature nameArea of inertia Iz (EF012514)
Feature value5.88 cm4
Feature nameMoment of resistance Wy (EF012503)
Feature value2.49 cm³
Feature nameMoment of resistance Wz (EF012504)
Feature value2.88 cm³
Feature nameSuitable for circuit integrity (EF007806)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface protection (EF000139)
Feature valueHot dip galvanized
Feature nameWeight (EF000167)
Feature value1.92 kg

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN
31 Mbytes
PDF CATALOGUE FASTENING MATERIALS OBO EN
18 Mbytes
