LKM Z200 6249981 OBO BETTERMANN RETAINER LKM Z200
LKM Z200
6249981
OBO BETTERMANN
10

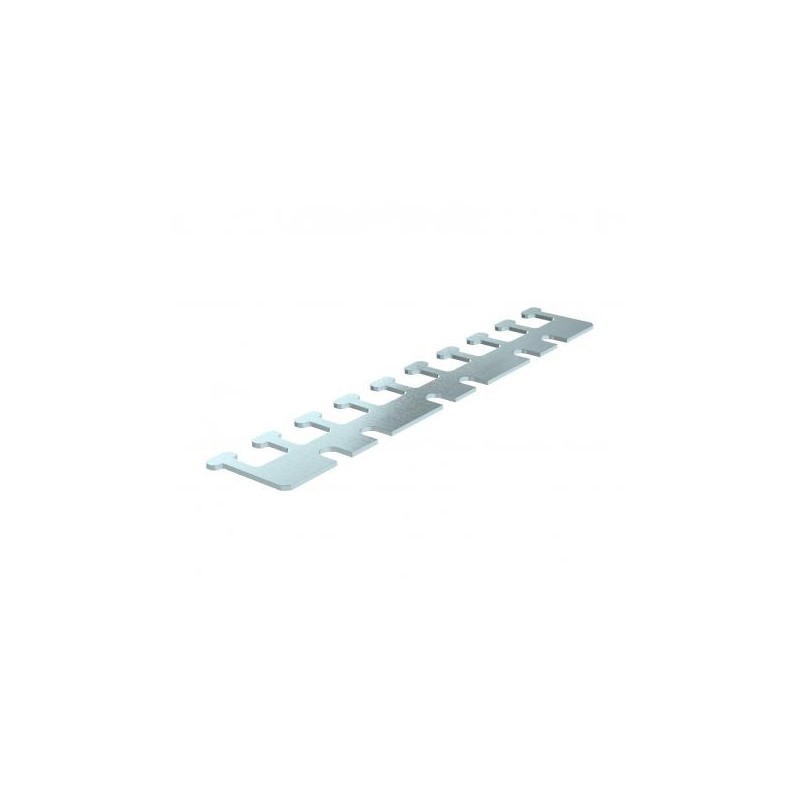

RETAINER LKM Z200
Conductor bracket200mm, galvanised steel on band, DIN EN 10346
LKM cable bracket, duct width 200 mm. Cable bracket to fix cables in vertical routing.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,2024 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Cover width | 200 mm |
| Dimension | 200mm |
| Dimension a | 166 mm |
| Dimension b | 30 mm |
| Fastening type | Screw-on |
| for duct dimension | 60 x 200 mm |
| Halogen-free | yes |
| Height | 1,4 mm |
| Length | 30 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Steel |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Self-extinguishing | no |
| Surface | Strip galvanized |
| Width | 166 mm |
| With equipotential bonding | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
