ISS160160IP6 EL 6290406 OBO BETTERMANN COLUMN DISTRIBUTION ISS160160IP6 THE
ISS160160IP6 EL
6290406
OBO BETTERMANN
COLUMN DISTRIBUTION ISS160160IP6 THE

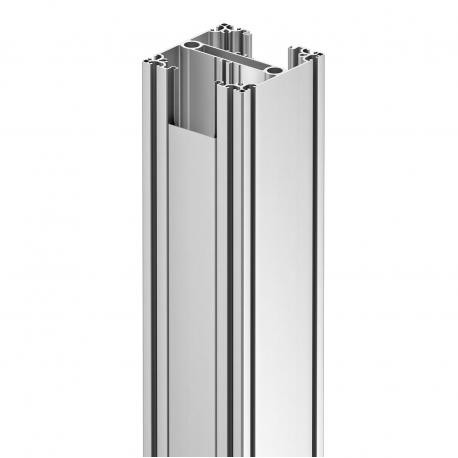

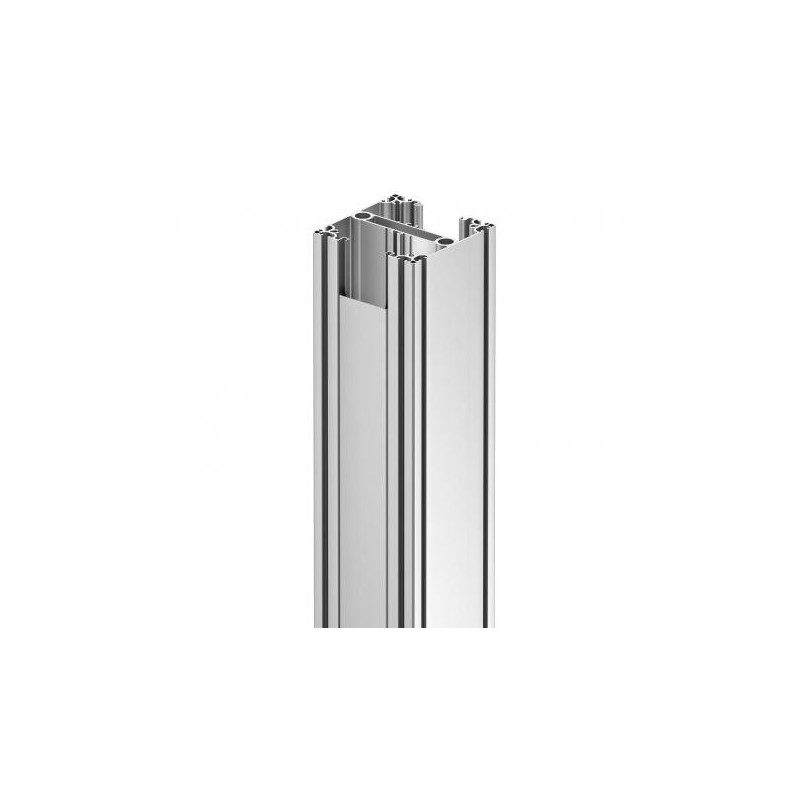

Industrial service pole, type ISS160160IP6. ISS service pole for the equipment of assembly workstations in production sites. The anodised heavy-duty aluminium profile has a 76.5 mm system opening on two opposite sides for accepting front-locking mounting accessory boxes of the series 71GD or mounting supports of the series 71MT. All four sides of the profile have a mounting groove in the standard nominal size 8 for installing various expansion parts for additional functions (Building Kit Systems). The scope of delivery comprises the pole profile as well as the necessary covers for the system openings in 2,000 mm lengths and a PE bag with 20 additional locking brackets, type RKV3V, to enable you to create partial lengths of the covers. Two closed trunking channels inside the profile are i
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable | no |
|---|---|
| Cable entry | Top/bottom |
| Ceiling mounting | yes |
| Changes according to location | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 814,0582 kg CO2e / 1 Piece |
| Colour | aluminium |
| Continuous profile | yes |
| Cover width | 76,5 mm |
| Dimension | 6000x160x160 |
| Fastening type | Mounting flange |
| Floor mounting | yes |
| Halogen-free | yes |
| Height | 160 mm |
| Length | 6000 mm |
| Material | Aluminium |
|---|---|
| Number of compartments | 2 St. |
| Number of usable covers | 2 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Pole height, min. | 6000 mm |
| Pole shape | Square |
| Pre-wired | no |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Surface | Anodised |
| Version for | Double-sided |
| Width | 160 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
