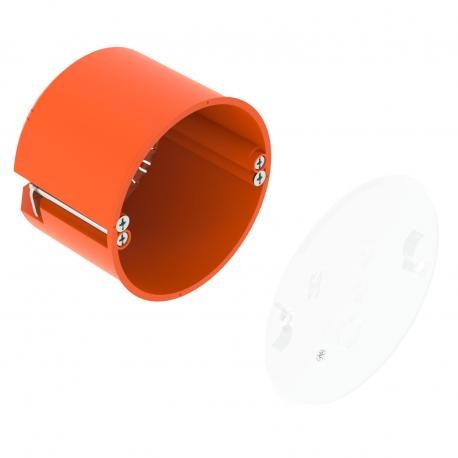

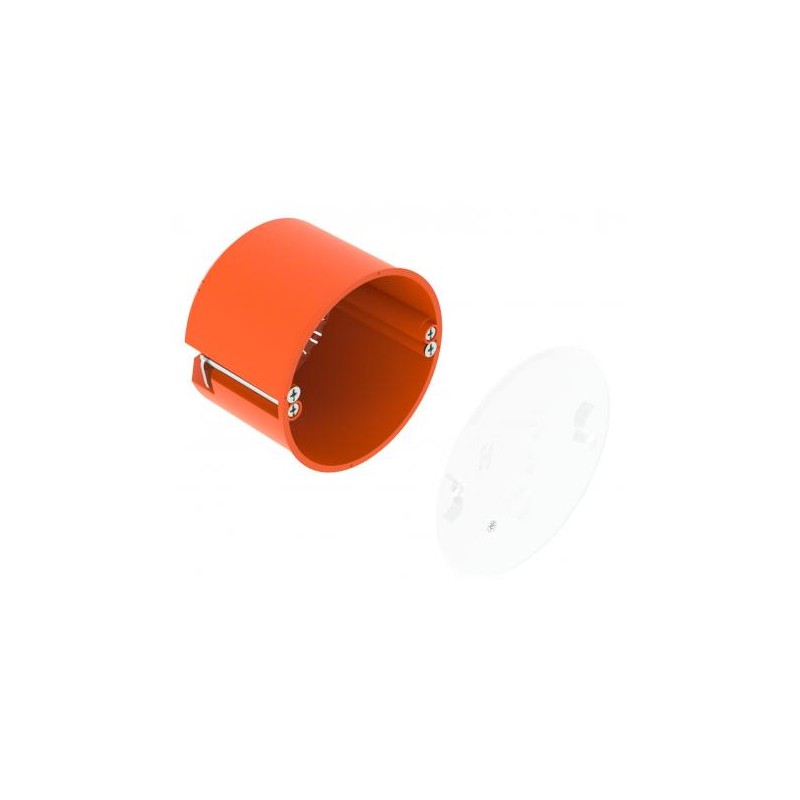

HG 61-AD-D 2003820 OBO BETTERMANN HW Wall socket panel HG 61-AD-D, with lid Ø74mm, H61mm Polypropylene, PP
HG 61-AD-D
2003820
OBO BETTERMANN
10
HW Wall socket panel HG 61-AD-D, with lid Ø74mm, H61mm Polypropylene, PP
HW Box Wall Socket Panel with Lid HG 61-AD-D
HW Cavity wall device box 61, CEE/PERILEX, with cover. CEE/PERILEX cavity wall device box with cover, for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5–40 mm.• 2 screw domes• Device screws, clamping straps• 3 combination pipe entries of Ø 20 and 25 mm• 3 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²• 1 entry for NYM cables 3 x 1.5 mm²Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Airtight | no |
|---|---|
| Cable entries 3 x 1.5 mm² | 1 |
| Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² | 3 |
| Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² | 2 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1237 kg CO2e / 1 Piece |
| Colour | Orange |
| Combination entries Ø 20 / 25 mm | 3 |
| Cover | White |
| Cover fastening | Screws , |
| Cover screw clearance | 67 mm |
| Device fixing | Screws , |
| Diameter | 74 mm |
| Dimension | Ø74mm, H61mm |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C |
| for pipe diameter | 20/25 mm |
| Halogen-free | yes |
| Height | 61 mm |
| Impact-resistant | no |
|---|---|
| Material | Polypropylene |
| Milling hole diameter | 74 mm |
| No. of entries | 9 |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 1,5 mm² |
| Number of switch boxes | 1 |
| Protection rating | IP30 |
| Rated voltage | 400 V |
| Shape | Round |
| Suitable for plate thickness, max. | 40 mm |
| Suitable for plate thickness, min. | 5 mm |
| Support | Without |
| Type of entry | NYM cables and pipes |
| Type of housing penetration | Break-out opening |
| With bolts | yes |
| Feature Name | Feature Value |
|---|---|
| Shape (EF000051) | Round |
| Construction type (EF000767) | Cable junction box |
| Model (EF000010) | Single |
| Diameter (EF000551) | 74 mm |
| Depth (EF005457) | 61 mm |
| For number of electric fittings (EF004702) | 1 |
| Mounting switching equipment (EF004508) | Screwing |
| With screws (EF005066) | Yes |
| Housing feed-through by break-out opening (EF009763) | Yes |
| Housing feed-through by seal membrane (EF009206) | No |
| Housing feed-through by nozzle (EF009207) | No |
| Housing feed-through by step membrane (EF009208) | No |
| For tube diameter (EF005496) | 20/25 mm |
| Number of inlets (EF003593) | 9 |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Orange |
| Degree of protection (IP) (EF005474) | IP30 |
| Cover attachment (EF004586) | Screwed |
| Nozzle (EF008076) | None |
