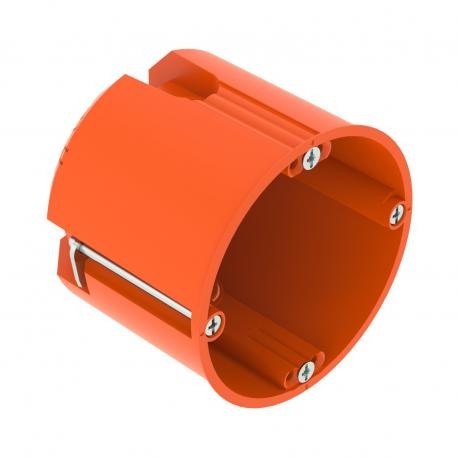

OBO BETTERMANN HG 61 2003804 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

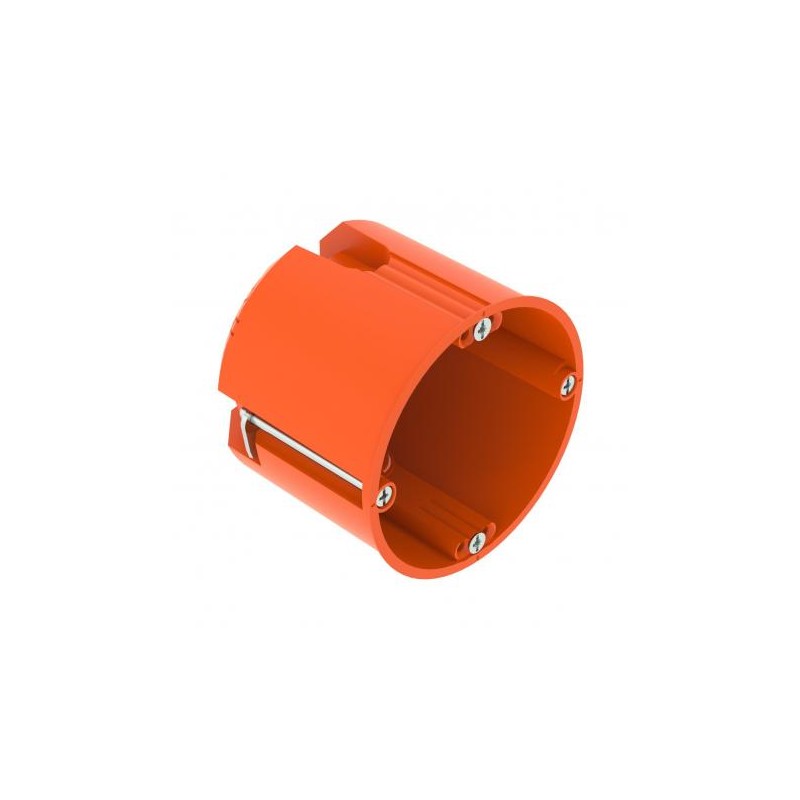

HG 61 2003804 OBO BETTERMANN HW Wall socket panel HG 61 Ø68mm, H61mm Polypropylene, PP

Reference: HG 61

Code: 2003804

Manufacturer: OBO BETTERMANN

Description:

HW Wall socket panel HG 61 Ø68mm, H61mm Polypropylene, PP
HW Box Wall Socket Panel HG 61
Cavity wall device connection box 61. Cavity wall device box for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5-40 mm. • 2 x 3 screw domes• Device screws, clamping straps• 2 combination pipe entries of Ø 20 and 25 mm• 4 entries for NYM cables 3 x 1.5 mm• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²• Connection with other device boxes via connector, type ZH 11-VDelivery accessories: 10 x connectors, type ZH 11-VTested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Categories:

  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 32,94 €

Unit Price: 1,3177 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Airtightno
Cable entries 3 x 1.5 mm²4
Cable entries 3 x 2.5 mm² / 5 x 1.5 mm²2
Cable entries 5 x 2.5 mm² / 7 x 1.5 mm²2
Cable entries for low voltages2
CO2 Footprint (GWP) Cradle-to-Gate0,087 kg CO2e / 1 Piece
ColourOrange
CoverWithout
Cover fasteningScrews ,
Device fixingScrews ,
Diameter68 mm
DimensionØ68mm, H61mm
Flame-resistantAcc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
for pipe diameter20/25 mm
Halogen-freeyes
Height61 mm
Impact-resistantno
MaterialPolypropylene
Milling hole diameter68 mm
No. of entries10
Nominal cross-section, max.2,5 mm²
Nominal cross-section, min.1,5 mm²
Number of switch boxes1
Protection ratingIP30
Rated voltage400 V
ShapeRound
Suitable for plate thickness, max.40 mm
Suitable for plate thickness, min.5 mm
SupportConnector
Type of entryNYM cables, data cables and corrugated pipes
Type of housing penetrationBreak-out opening
With boltsyes

ETIM for 2003804 Junction and back boxes (EC002601)

Feature nameMounting method (EF000003)
Feature valueHollow wall
Feature nameShape (EF000051)
Feature valueRound
Feature nameConstruction type (EF000767)
Feature valueFlush mounted box
Feature nameModel (EF000010)
Feature valueSingle
Feature nameDiameter (EF000551)
Feature value68 mm
Feature nameDepth (EF005457)
Feature value61 mm
Feature nameFor number of electric fittings (EF004702)
Feature value1
Feature nameMounting switching equipment (EF004508)
Feature valueScrewing
Feature nameWith screws (EF005066)
Feature valueYes
Feature nameHousing feed-through by break-out opening (EF009763)
Feature valueYes
Feature nameHousing feed-through by seal membrane (EF009206)
Feature valueNo
Feature nameHousing feed-through by nozzle (EF009207)
Feature valueNo
Feature nameHousing feed-through by step membrane (EF009208)
Feature valueNo
Feature nameFor tube diameter (EF005496)
Feature value20/25 mm
Feature nameNumber of inlets (EF003593)
Feature value10
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOrange
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameCover attachment (EF004586)
Feature valueScrewed
Feature nameNozzle (EF008076)
Feature valueOther
