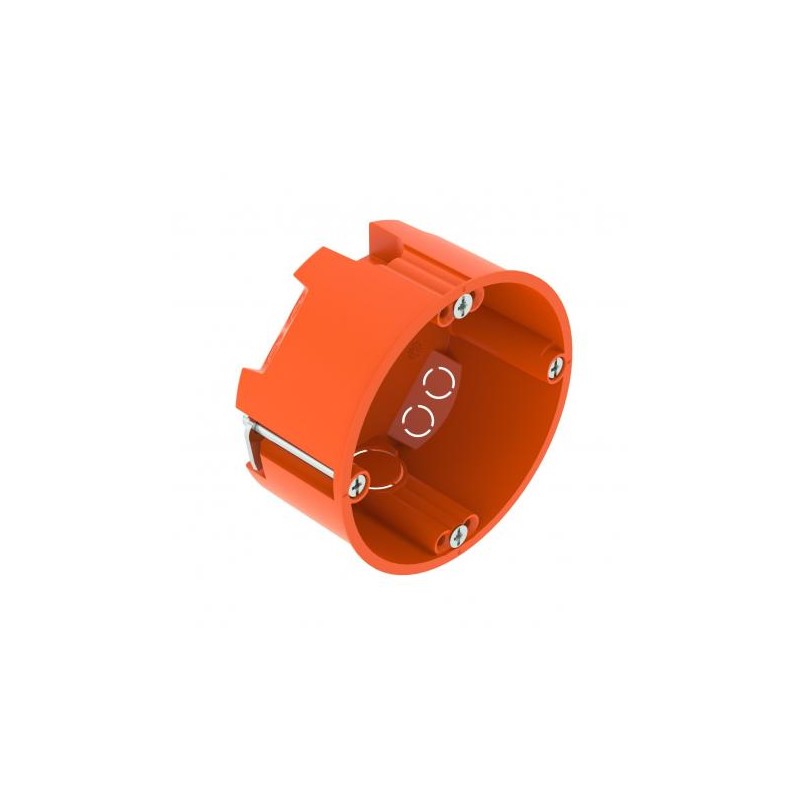

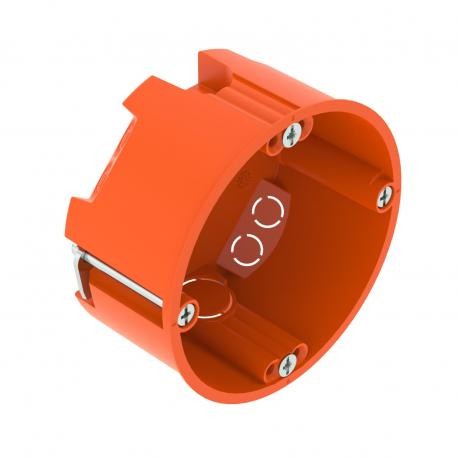

HG 35 2003800 OBO BETTERMANN HW Wall socket panel HG 35, flat design Ø68mm, H35mm Polypropylene, PP
HG 35
2003800
OBO BETTERMANN
25
HW Wall socket panel HG 35, flat design Ø68mm, H35mm Polypropylene, PP
HW Box Wall Socket Panel Flat Design HG 35
Cavity wall device box 35. Cavity wall device box for use in cavity walls with an installation depth of at least 35 mm and a plate thickness of 5–28 mm. • 2 x 3 screw domes• Device screws, clamping straps• 4 entries for NYM cables 3 x 1.5 mm• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²• Connection with other device boxes of type HG 35 via connector, type ZH 11-VDelivery accessories: 10 x connectors, type ZH 11-VTested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Airtight | no |
|---|---|
| Cable entries 3 x 1.5 mm² | 4 |
| Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² | 2 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,064 kg CO2e / 1 Piece |
| Colour | Orange |
| Cover | Without |
| Cover fastening | Screws , |
| Device fixing | Screws , |
| Diameter | 68 mm |
| Dimension | Ø68mm, H35mm |
| Flame-resistant | Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C |
| Halogen-free | yes |
| Height | 35 mm |
| Impact-resistant | no |
| Material | Polypropylene |
| Milling hole diameter | 68 mm |
|---|---|
| No. of entries | 6 |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 1,5 mm² |
| Number of switch boxes | 1 |
| Protection rating | IP30 |
| Rated voltage | 400 V |
| Shape | Round |
| Suitable for plate thickness, max. | 28 mm |
| Suitable for plate thickness, min. | 5 mm |
| Support | Connector |
| Type of entry | NYM cables and data cables |
| Type of housing penetration | Break-out opening |
| With bolts | yes |
| Feature Name | Feature Value |
|---|---|
| Shape (EF000051) | Round |
| Construction type (EF000767) | Flush mounted box |
| Model (EF000010) | Single |
| Diameter (EF000551) | 68 mm |
| Depth (EF005457) | 35 mm |
| For number of electric fittings (EF004702) | 1 |
| Mounting switching equipment (EF004508) | Screwing |
| With screws (EF005066) | Yes |
| Housing feed-through by break-out opening (EF009763) | Yes |
| Housing feed-through by seal membrane (EF009206) | No |
| Housing feed-through by nozzle (EF009207) | No |
| Housing feed-through by step membrane (EF009208) | No |
| Number of inlets (EF003593) | 6 |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Orange |
| Degree of protection (IP) (EF005474) | IP30 |
| Cover attachment (EF004586) | Screwed |
| Nozzle (EF008076) | Other |
