GMS 4 VW 90 FT 1124663 OBO BETTERMANN ANGLE FOR UNION GMS 4 VW 90 FT
GMS 4 VW 90 FT
1124663
OBO BETTERMANN
10
ANGLE FOR UNION GMS 4 VW 90 FT

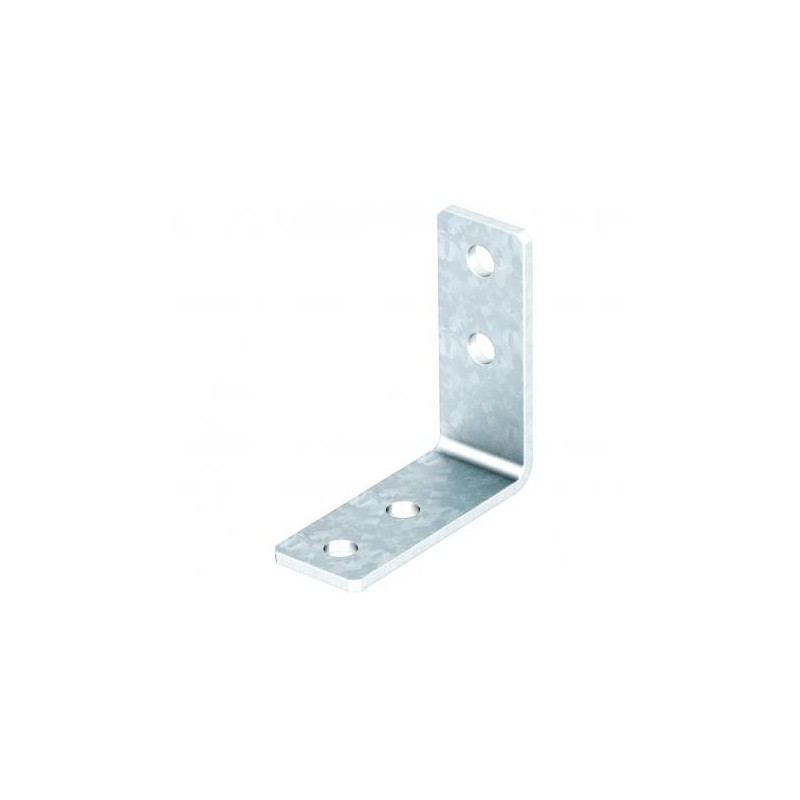

Mounting bracket, 90° with 4 holes FT. Mounting bracket with four holes to connect profile rails 41 x 41 mm and 41 x 21 mm at an angle of 90°.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,7429 kg CO2e / 1 Piece |
|---|---|
| Dimension | 104x104x40x5 |
| Height | 104 mm |
| Hole size | 13 mm |
| Length | 104 mm |
| Material | Steel |
| Material thickness | 5 mm |
| Rustproof steel, pickled | no |
|---|---|
| Suitable for profile shapes | C profile |
| Surface | Hot-dip galvanised |
| Version for | 90° angle |
| Width | 40 mm |
| With screw accessories | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
