GMS 2 VW 90 V2A 1124699 OBO BETTERMANN ANGLE FOR UNION GMS 2 VW 90 V2A
GMS 2 VW 90 A2
1124699
OBO BETTERMANN
10
ANGLE FOR UNION GMS 2 VW 90 V2A

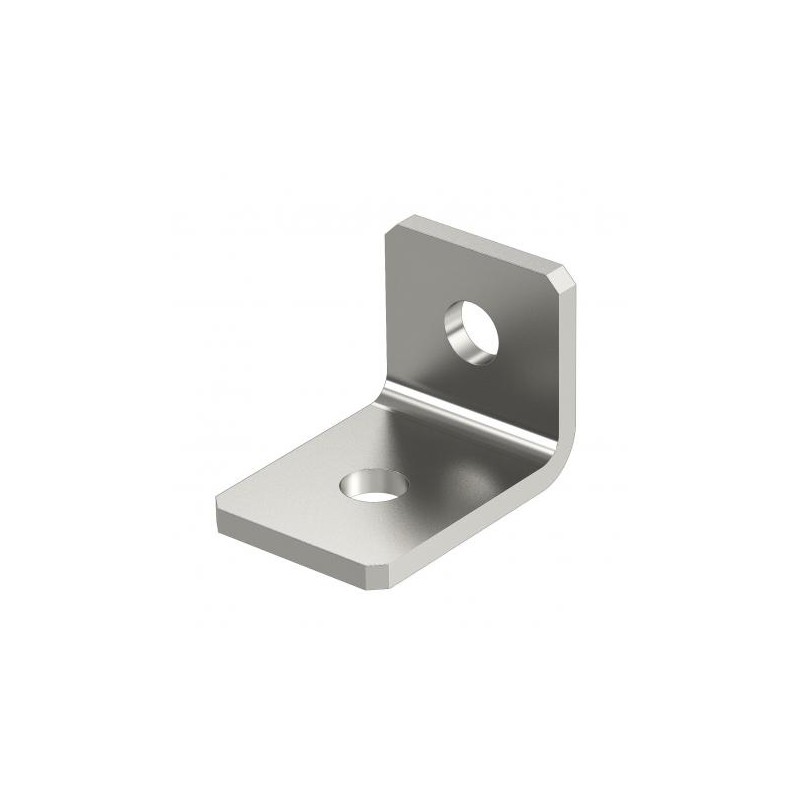

Mounting bracket, 90° with 2 holes A2. Mounting bracket with two holes to connect profile rails 41 x 41 mm and 41 x 21 mm at an angle of 90°.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,7087 kg CO2e / 1 Piece |
|---|---|
| Dimension | 54x54x40x4 |
| Height | 54 mm |
| Hole size | 13 mm |
| Length | 54 mm |
| Material | Stainless steel 1.4301 |
| Material thickness | 4 mm |
| Rustproof steel, pickled | no |
|---|---|
| Suitable for profile shapes | C profile |
| Surface | Bright, treated |
| Version for | 90° angle |
| Width | 40 mm |
| With screw accessories | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
