GMS 2 VP FT 1124645 OBO BETTERMANN PLATE UNION GMS 2 VP FT
GMS 2 VP FT
1124645
OBO BETTERMANN
10
PLATE UNION GMS 2 VP FT

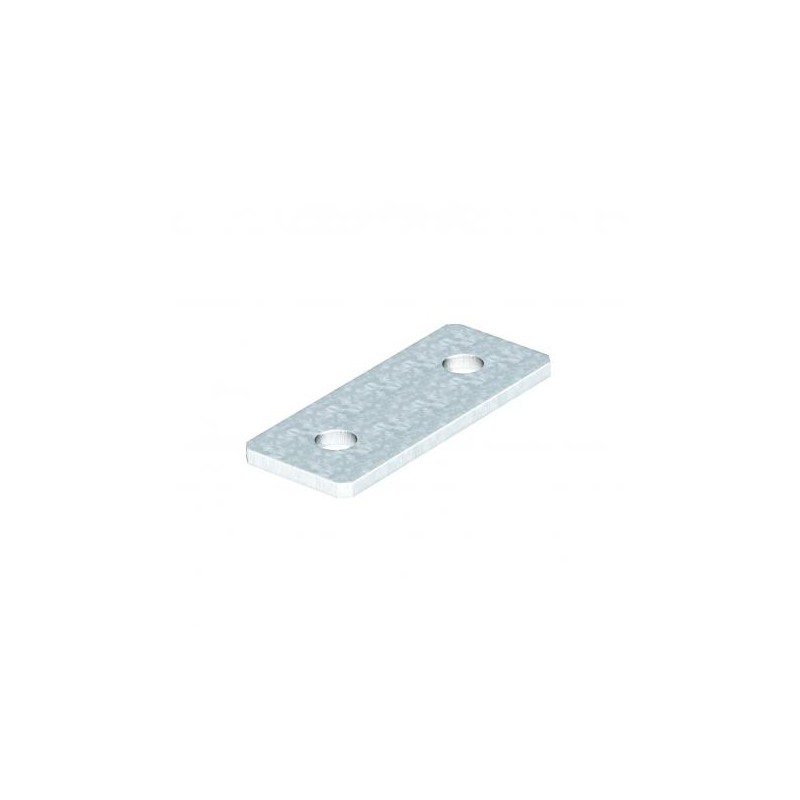

Connection plate with 2 holes FT. Connection plate with two holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,3485 kg CO2e / 1 Piece |
|---|---|
| Dimension | 100x40x5 |
| Height | 5 mm |
| Hole size | 13 mm |
| Length | 100 mm |
| Material | Steel |
| Material thickness | 5 mm |
| Rustproof steel, pickled | no |
|---|---|
| Suitable for profile shapes | C profile |
| Surface | Hot-dip galvanised |
| Version for | With continuous perforation 13 mm |
| Width | 40 mm |
| With screw accessories | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
