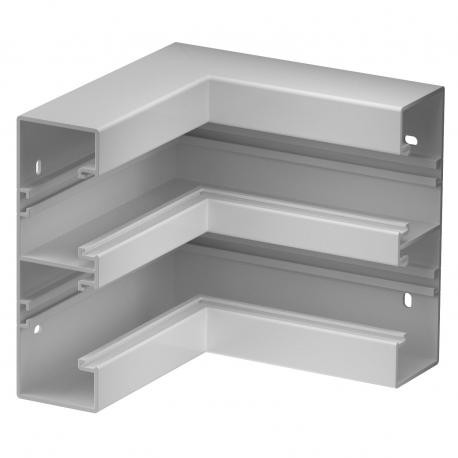

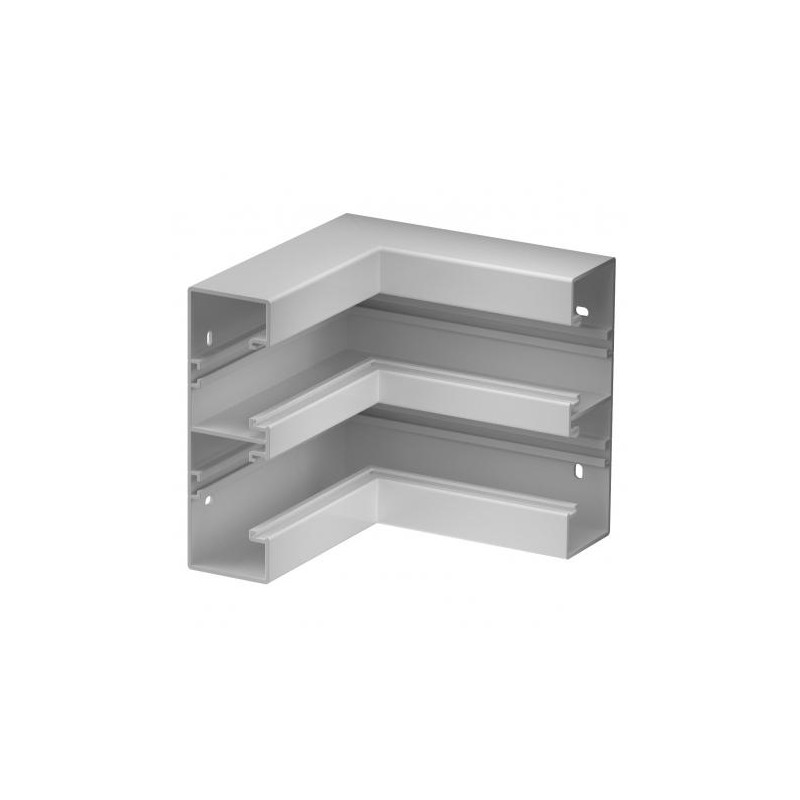

GK-IS53165LGR 6113432 OBO BETTERMANN INTERIOR ANGLE NOT VARIABLE, GK-IS53165LGR
GK-IS53165LGR
6113432
OBO BETTERMANN
INTERIOR ANGLE NOT VARIABLE, GK-IS53165LGR
GK-IS53165LGR inner angle, non-variable 175x175x165 Polyvinyl chloride, PVC,
GK-IS53165LGR 6113432 Internal corner
Installation ducts for wall and ceiling > Inner corner for wall duct
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲90° internal corner for changing the direction of the Rapid 45-2 device installation trunking.
| Type | GK-IS53165LGR |
| Colour | Light grey |
| Pack. pcs | 1 |
| Weight kg/100 pcs. | 54,500 |
| Item No. | 6113432 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 165 mm |
| Depth (EF000049) | 53 mm |
| Shape (EF000051) | Symmetric |
| Number of covers (EF004430) | 2 |
| Cover width 1 (EF005147) | 45 mm |
| Cover width 2 (EF005148) | 45 mm |
| Cover width 3 (EF005149) | 0 mm |
| Model (EF000010) | Base unit |
| Angle (EF005434) | 90 ° |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Anti-bacterial treatment (EF023790) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With protective foil (EF005266) | Yes |
| With duct connector (EF004826) | No |
| Bottom perforation (EF004545) | Yes |
| Mounting method cover (EF002922) | Inner lying |
| With cable fixing clip (EF004815) | No |
| Degree of protection (IP) (EF005474) | IP40 |
| Impact strength (EF004293) | IK08 |
| Operating temperature (EF001742) | -15 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
