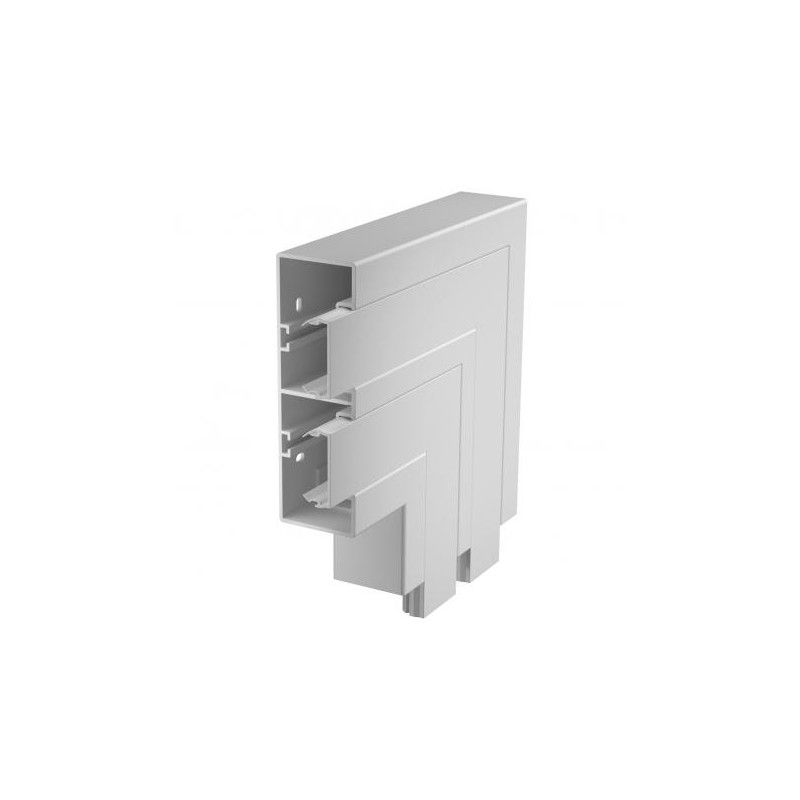

GK-FS53165LGR 6113452 OBO BETTERMANN ANGLE PLANE IS NOT VARIABLE, GK-FS53165LGR
GK-FS53165LGR
6113452
OBO BETTERMANN
ANGLE PLANE IS NOT VARIABLE, GK-FS53165LGR
GK-FS53165LGR flat angle, non-variable 200x200x165 Polyvinyl chloride, PVC,
Flat angle, for device installation trunking Rapid 45-2 type GK-53165. Flat angle for changing the direction of the Rapid 45-2 device installation trunking.
Installation ducts for wall and ceiling > Flat bend for wall duct
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| Antibacterial treatment | no |
| Cable retaining clip | no |
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,7458 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Cover mounting type | Internal |
| Cover width | 45 mm |
| Cover width 2 | 45 mm |
| Dimension | 200x200x165 |
| Duct connector | no |
| for duct width | 165 mm |
| for trunking height | 53 mm |
| Halogen-free | no |
|---|---|
| Height | 53 mm |
| Length | 225 mm |
| Material | Polyvinylchloride |
| Mounting perforation in base | yes |
| Number of covers | 2 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Protection rating | IP40 |
| Protection rating IK code | IK08 |
| Protective film | yes |
| Symmetrical | yes |
| Version for | Base and cover |
| Width | 165 mm |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 165 mm |
| Depth (EF000049) | 53 mm |
| Number of covers (EF004430) | 2 |
| Cover width 1 (EF005147) | 45 mm |
| Cover width 2 (EF005148) | 45 mm |
| Cover width 3 (EF005149) | 0 mm |
| Direction (EF005209) | Rising/descending |
| Symmetric (EF005329) | Yes |
| Model (EF000010) | Base unit and cover |
| Angle (EF005434) | 90 ° |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Anti-bacterial treatment (EF023790) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With protective foil (EF005266) | Yes |
| With duct connector (EF004826) | No |
| Bottom perforation (EF004545) | Yes |
| Mounting method cover (EF002922) | Inner lying |
| With cable fixing clip (EF004815) | No |
| Degree of protection (IP) (EF005474) | IP40 |
| Impact strength (EF004293) | IK08 |
| Operating temperature (EF001742) | -15 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
