GK-E53130LGR 6113282 OBO BETTERMANN END CAP P/RAPID 45-2 130, GK-E53130LGR
GK-E53130LGR
6113282
OBO BETTERMANN
END CAP P/RAPID 45-2 130, GK-E53130LGR

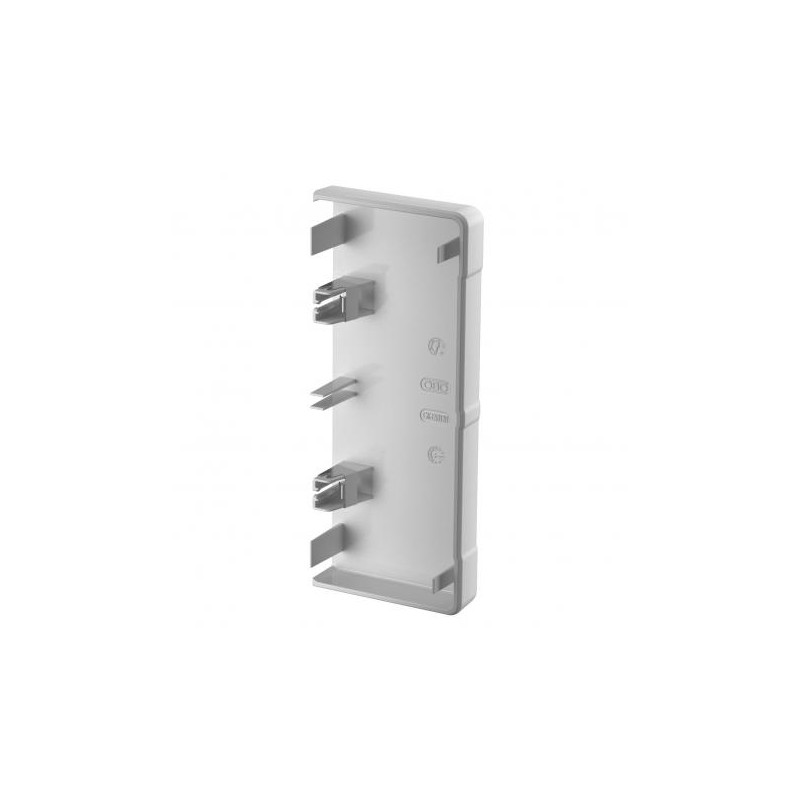

GK-E53130LGR end cap, for Rapid 45-2 130 136x56x22 Polycarbonate/Acrylonitrile-butadiene-styrole, PC/ABS,
End piece, for device installation trunking Rapid 45-2 type GK-53130. End piece for side closing of the Rapid 45-2 GK and GA 53130 device installation trunking.
Installation ducts for wall and ceiling > End piece for wall duct
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2258 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Cut lamination | yes |
| Dimension | 136x56x22 |
| Fastening type | Lockable |
| for duct width | 130 mm |
| for trunking height | 53 mm |
| Halogen-free | yes |
| Height | 56 mm |
| Length | 22 mm |
|---|---|
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Protection rating | IP40 |
| Protection rating IK code | IK08 |
| Protective film | no |
| Suitable for | Left/right |
| Version for | Symmetrical |
| Width | 136 mm |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 136 mm |
| Depth (EF000049) | 56 mm |
| Model (EF000010) | Symmetric |
| Suitable for (EF000073) | Left/right |
| Joint cover (EF005253) | Yes |
| Type of fastening (EF002442) | Snap on |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | PC/ABS |
| Halogen free (EF000025) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With protective foil (EF005266) | No |
| Degree of protection (IP) (EF005474) | IP40 |
| Operating temperature (EF001742) | -15 °C |
| Impact strength (EF004293) | IK08 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
