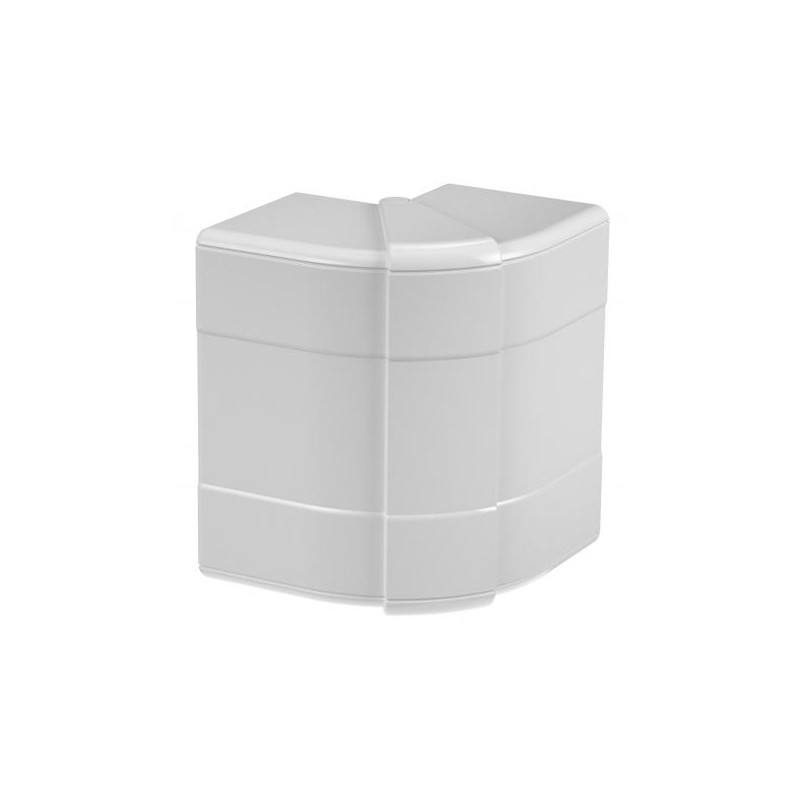

GK-AH53100LGR 6113052 OBO BETTERMANN EXTERIOR ANGLE VARIABLE, GK-AH53100LGR
GK-AH53100LGR
6113052
OBO BETTERMANN
EXTERIOR ANGLE VARIABLE, GK-AH53100LGR
Variable Outer Angle 110x88x88 Light Grey, RAL 7035 Polycarbonate/Acrylonitrile-Butadiene-Styrol, PC/ABS
External corner hood, for device installation trunking Rapid 45-2 type GK-53100. External corner for changing the direction of Rapid 45-2 device installation trunking. The fittings can be adjusted between 80‒110°.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle range, max. | 110 mm |
|---|---|
| Angle range, min. | 80 mm |
| Antibacterial treatment | no |
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5132 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Cover mounting type | Cross-over |
| Dimension | 110x88x88 |
| Duct connector | no |
| for duct width | 100 mm |
| for trunking height | 53 mm |
| Halogen-free | yes |
| Height | 55 mm |
| Length | 88 mm |
|---|---|
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Mounting perforation in base | no |
| Number of covers | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Protection rating | IP40 |
| Protection rating IK code | IK08 |
| Protective film | no |
| Symmetrical | yes |
| Version for | Hood fitting |
| Width | 110 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
