CPS 4L 2M V4A 1121963 OBO BETTERMANN PROFILE CPS 4L 2M V4A
MS4022P2000A4
1121963
OBO BETTERMANN
2 m.
PROFILE CPS 4L 2M V4A

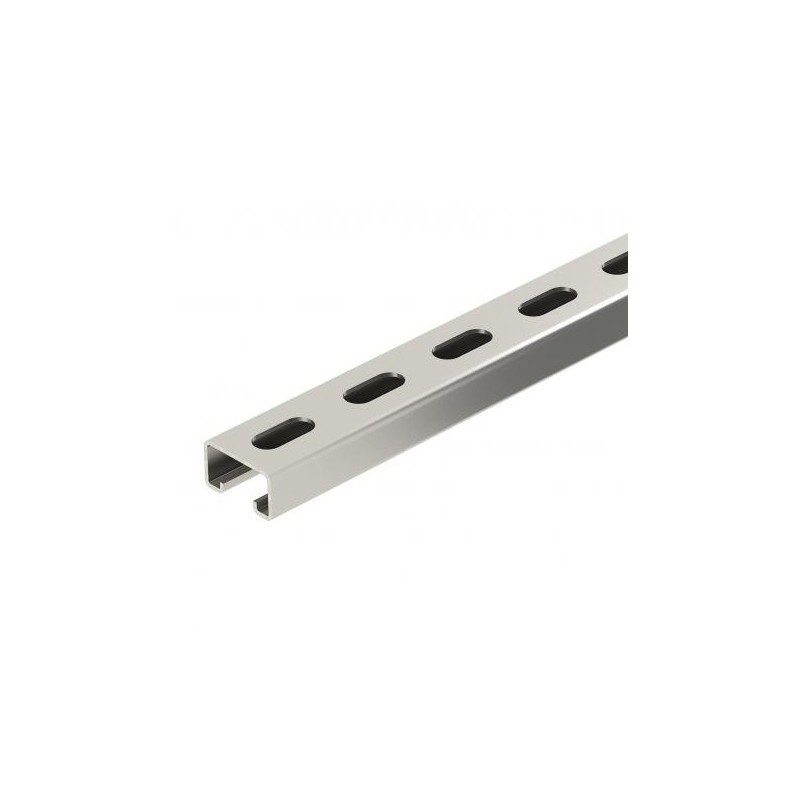

Mounting rail MS4022, heavy-duty, slot 18 mm, A4, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0204 kg CO2e / 1 Meter |
|---|---|
| Dimension | 2000x40x22,5 |
| Dimension L | 2000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 22,5 mm |
| Length | 2000 mm |
| Material | Stainless steel 1.4571 |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 18 mm |
| Static value A | 1,74 cm² |
| Static value ly | 1,86 cm⁴ |
|---|---|
| Static value lz | 4,46 cm⁴ |
| Static value Wy | 1,05 cm³ |
| Static value Wz | 2,23 cm³ |
| Surface | Bright, treated |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 40 mm |
| With perforation | no |
| With toothing | no |
