View larger

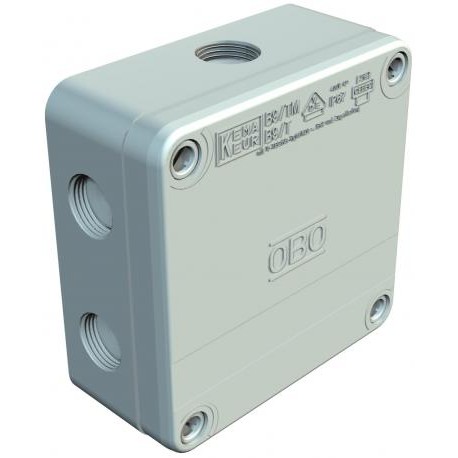

B 9 T M 5 2001845 OBO BETTERMANN CABLE JUNCTION BOX, B 9 T M 5
B 9 T M 5
2001845
OBO BETTERMANN
5
CABLE JUNCTION BOX, B 9 T M 5
Junction box B 9 T, perforation membrane, with terminal strip, metric. The B9/T... wet-room junction box comprises two different halogen-free plastic components, 2 additional entries in base with push-through membrane(for cable diameter up to 15 mm) with perforation membrane (for cable diameters up to 15 mm) in the floor area. Where cable glands are used (giving additional strain relief) there is no need to remove the membrane (this saves time). Protection rating IP67 with perforation membrane and with cable gland without the removal of the perforation membrane.Nominal voltage 400 V; nominal cross-section 4 ÷ 6 mm²The cover is secured with 4 pre-fitted, captured quick cover fastenings (180°) and can be sealed. The fastening holes are additionally moulded with a soft plastic component, fo
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲The wet-room junction box B9/T...: comprises two halogen-free plastic components, 2 additional entries in base with push-through membrane
| Type | B 9 T M 5 |
| Colour | Light grey |
| Dimension LxWxH mm | 110x110x51 |
| Version | With terminal strip |
| Pack. pcs | 5 |
| Weight kg/100 pcs. | 17,500 |
| Item No. | 2001845 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
