ASG 732 10 A4 1362460 OBO BETTERMANN ASG 732 10 A4 clamp, with M6 8-10mm splice thread Stainless steel 1.457..
ASG 732 10 A4
1362460
OBO BETTERMANN
25

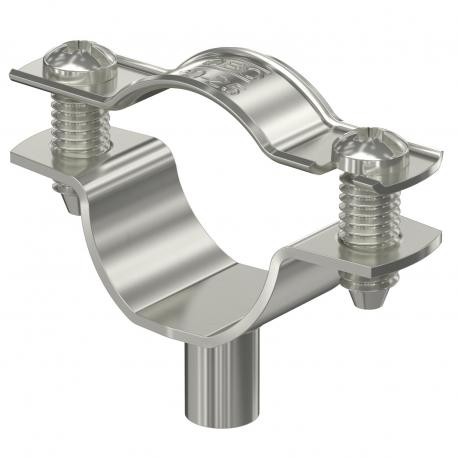

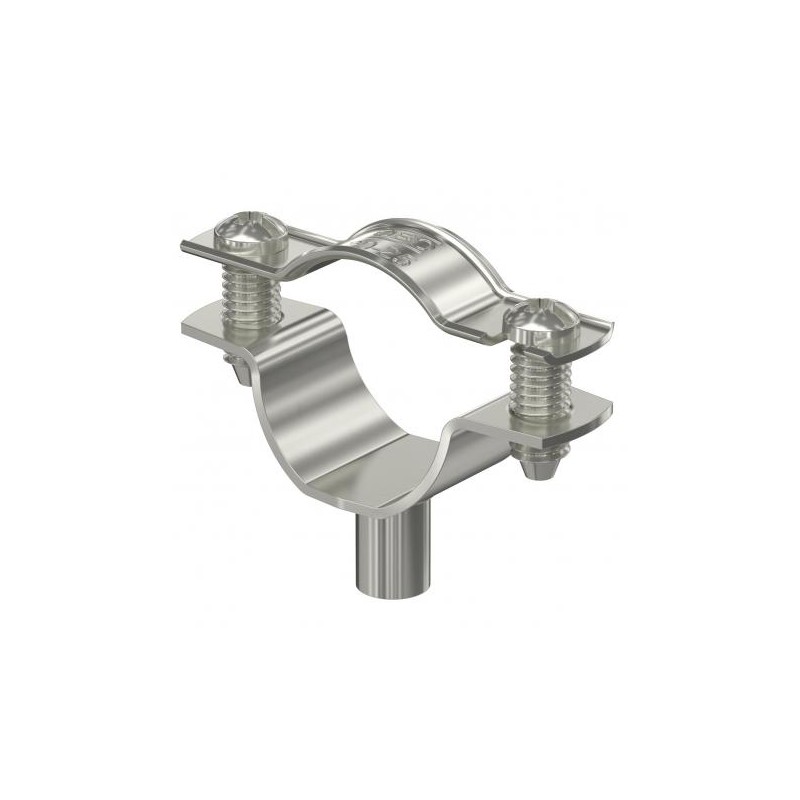

ASG 732 10 A4 clamp, with M6 8-10mm splice thread Stainless steel 1.4571, V4A, 1.4571
Clamp 732 A4
Spacer clip 732 A4. Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via attachment piece with internal thread.Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
VBS Connection and fastening systems - OBO BETTERMANN > VBS Pizza metal fixation - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range D, max. | 10 mm |
|---|---|
| Clamping range D, min. | 8 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,156 kg CO2e / 1 Piece |
| Dimension | 8-10mm |
| Dimension A | 37 mm |
| Dimension B | 25 mm |
| Dimension b | 18 mm |
| Dimension D | 10 mm |
| Dimension d max. | 10 mm |
| Dimension d min. | 8 mm |
| Dimension H1 | 12 mm |
| Dimension t1 (mm) | 1 |
| Dimension t2 (mm) | 1,25 |
| Dimension x | 3 mm |
|---|---|
| Distance to the wall | yes |
| Fastening type | Threaded connection |
| For diameter | 8 - 10 |
| Halogen-free | yes |
| Maintain electrical functions | yes |
| Material | Stainless steel 1.4571 |
| Material thickness | 1,25 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| UV-resistant | yes |
| Version for | Closed |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
