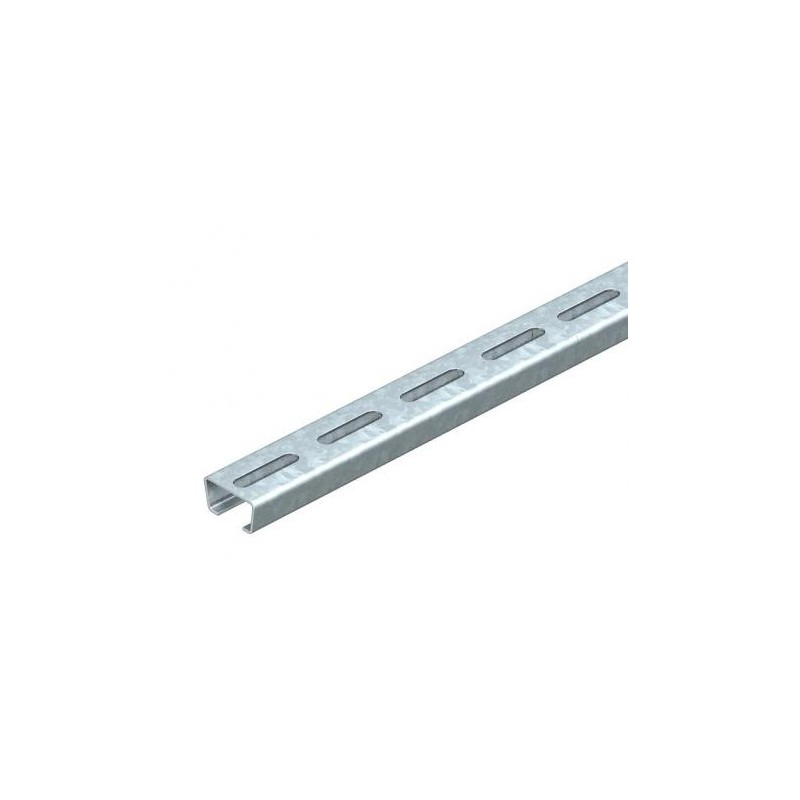

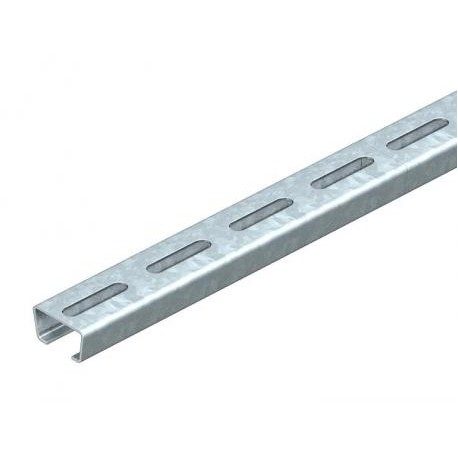

AML3518P1000FS 1119646 OBO BETTERMANN PROFILE, PERFORATED, SLIT WIDTH 16,5 MM, AML3518P1000FS
AML3518P1000FS
1119646
OBO BETTERMANN
1 m.
PROFILE, PERFORATED, SLIT WIDTH 16,5 MM, AML3518P1000FS
Profile AML3518P1000FS, perfor., slot width 16.5mm 1000x35x18 Steel, St, strip galvanized, DIN EN 10346
AML3518P1000FS 1119646 Profile rail 2068, slot width 16.5, FS, perforated
Connectors > Cable connector
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲AML3518P1000FS 1119646 Profile rail 2068, slot width 16.5, FS, perforated
| Type | AML3518P1000FS |
| Length mm | 1000 |
| Dimension W x H mm | 35 x 18 |
| Material thickness mm | 1,5 |
| Dimen- sion L mm | 1000 |
| Pack. m | 10 |
| Weight kg/100 m | 82,000 |
| Item No. | 1119646 |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 1000 mm |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 18 mm |
| Material thickness (EF000386) | 1.5 mm |
| Profile shape (EF005179) | C-profile |
| Type of perforation (EF004147) | Slotted |
| With toothing (EF000571) | No |
| Area moment of inertia Iy (EF012513) | 0.44 cm4 |
| Area of inertia Iz (EF012514) | 1.84 cm4 |
| Moment of resistance Wy (EF012503) | 0.42 cm³ |
| Moment of resistance Wz (EF012504) | 1.05 cm³ |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 0.82 kg |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
