AML3518P1000A2 1119700 OBO BETTERMANN PROFILE, PERFORATED, SLIT WIDTH 16,5 MM, AML3518P1000A2
AML3518P1000A2
1119700
OBO BETTERMANN
1 m.

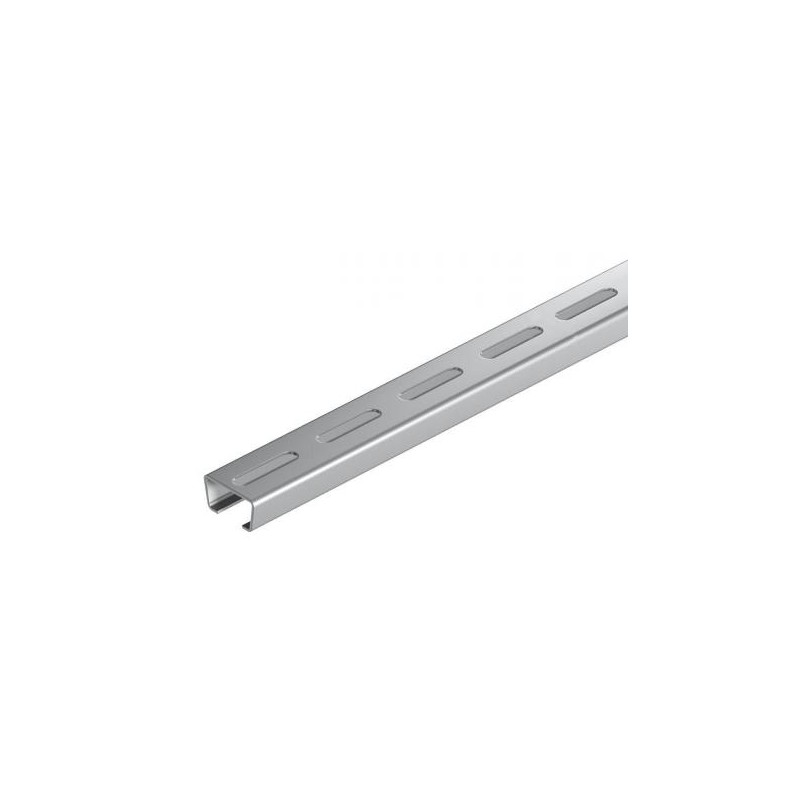

PROFILE, PERFORATED, SLIT WIDTH 16,5 MM, AML3518P1000A2
Perforated AML3518P1000A2 profile, slot width 16.5mm 1000x35x18 Stainless steel 1.4301, A2, 1.4301 Polished, with subsequent treatment
AML3518 anchor rail, slot 16.5 mm, A2, perforated. Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
Fasteners > Mounting rail/-profile
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 4,2834 kg CO2e / 1 Meter |
| Dimension | 1000x35x18 |
| Dimension L | 1000 mm |
| Drill hole spacing, centre | 50 mm |
| Height | 18 mm |
| Length | 1000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 1,5 mm |
| Profile shape | C profile |
| Slot width | 16,5 mm |
| Static value A | 1,01 cm² |
|---|---|
| Static value ly | 0,44 cm⁴ |
| Static value lz | 1,84 cm⁴ |
| Static value Wy | 0,42 cm³ |
| Static value Wz | 1,05 cm³ |
| Surface | Bright, treated |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 35 mm |
| With perforation | yes |
| With toothing | no |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 1000 mm |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 18 mm |
| Material thickness (EF000386) | 1.5 mm |
| Profile shape (EF005179) | C-profile |
| Type of perforation (EF004147) | Slotted |
| With toothing (EF000571) | No |
| Area moment of inertia Iy (EF012513) | 0.44 cm4 |
| Area of inertia Iz (EF012514) | 1.84 cm4 |
| Moment of resistance Wy (EF012503) | 0.42 cm³ |
| Moment of resistance Wz (EF012504) | 1.05 cm³ |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Rustproof and acidproof steel |
| Surface protection (EF000139) | Other |
| Weight (EF000167) | 0.82 kg |
