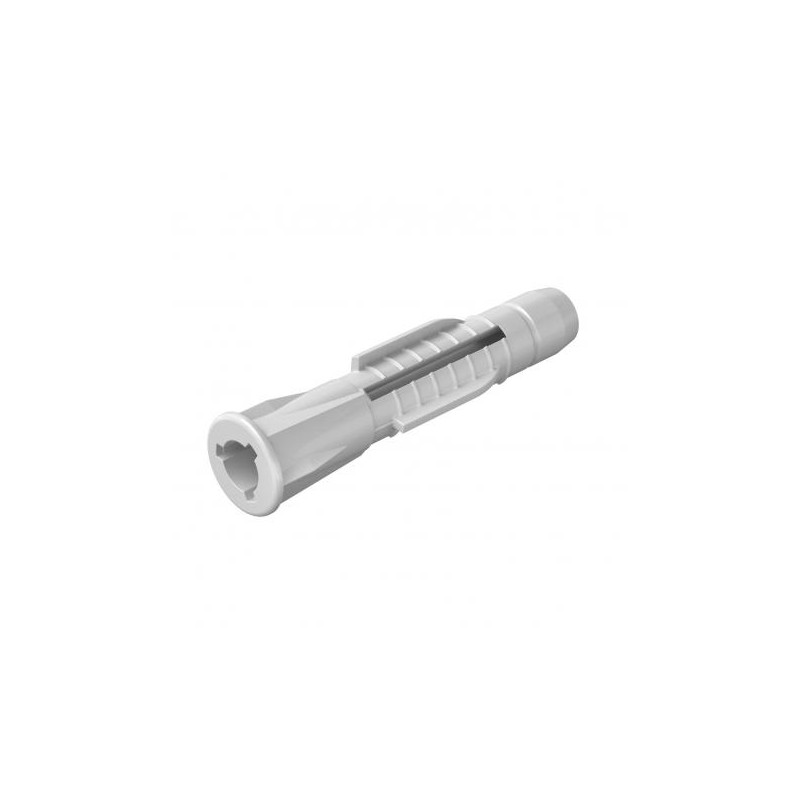

910 AZK 12x71 2348128 OBO BETTERMANN Bolt all uses 12x71 light grey Polyamide, PA
910 AZK 12x71
2348128
OBO BETTERMANN
25
Bolt all uses 12x71 light grey Polyamide, PA
Multipurpose anchor. Also suitable as a cavity anchor, with collar to prevent slipping. 3 tabs take up the torque.Required minimum screw length = anchor length + component thickness + 1 x screw Ø.Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.Our safety value recommendation: 5x
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Colour | Light grey |
|---|---|
| Diameter | 12 mm |
| Dimension | 12x71 |
| Dimension D | 12 mm |
| Dimension L | 71 mm |
| Drill hole diameter, min. | 12 mm |
| Material | Polyamide |
|---|---|
| Suitable for fastening with cable ties | no |
| Suitable for hexagonal wood screw | yes |
| Version for | Universal anchor |
| With bolts | no |
| Wood screws | 8-10 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Universal anchor plug |
| Drill hole diameter (EF004562) | 12 mm |
| With screw (EF000385) | No |
| Suitable for coach screw (EF005797) | Yes |
| Suitable for fixing with cable ties (EF007799) | No |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Colour (EF000007) | Grey |
| With edge (EF006220) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
