6290095 OBO BETTERMANN COLUMN ISSRM45F BL
ISSRM45FRW
6290095
OBO BETTERMANN
COLUMN ISSRM45F BL

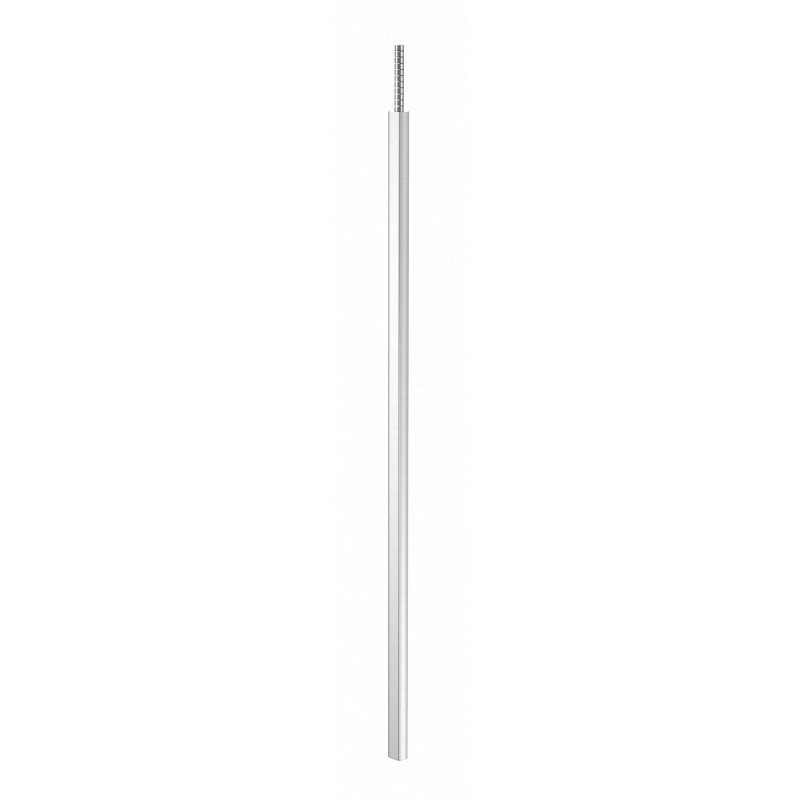

Service pole, type ISSRM45F. ISS aluminium service pole with a flexible hose to the ceiling and a 45 mm system opening. Set consisting of:1 one-compartment pole with flexible hose to ceiling Total length: 2,300 mm 1 flexible hose, length: 1,500 mm1 aluminium cover Length: 2,300 mmThe design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices. The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see articles below).
Installation column systems > Installation column
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable | yes |
|---|---|
| Cable entry | Top |
| Ceiling mounting | yes |
| Changes according to location | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 58,0164 kg CO2e / 1 Piece |
| Colour | Pure white; RAL 9010 |
| Continuous profile | yes |
| Cover width | 45 mm |
| Dimension | 2300x70x59 |
| Fastening type | Stand |
| Floor mounting | yes |
| Halogen-free | yes |
| Height | 59 mm |
|---|---|
| Height compensation, max. | 1500 mm |
| Length | 2300 mm |
| Material | Aluminium |
| Number of compartments | 1 St. |
| Number of usable covers | 1 |
| Pole height, max. | 3800 mm |
| Pole height, min. | 2300 mm |
| Pole shape | Round |
| Pre-wired | no |
| Version for | Single-sided |
| Width | 70 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6290095 OBO BETTERMANN COLUMN ISSRM45F BL | 68 Kbytes |
|
