6289974 OBO BETTERMANN COLUMN ISSDM45F BL
ISSDM45FRW
6289974
OBO BETTERMANN
COLUMN ISSDM45F BL

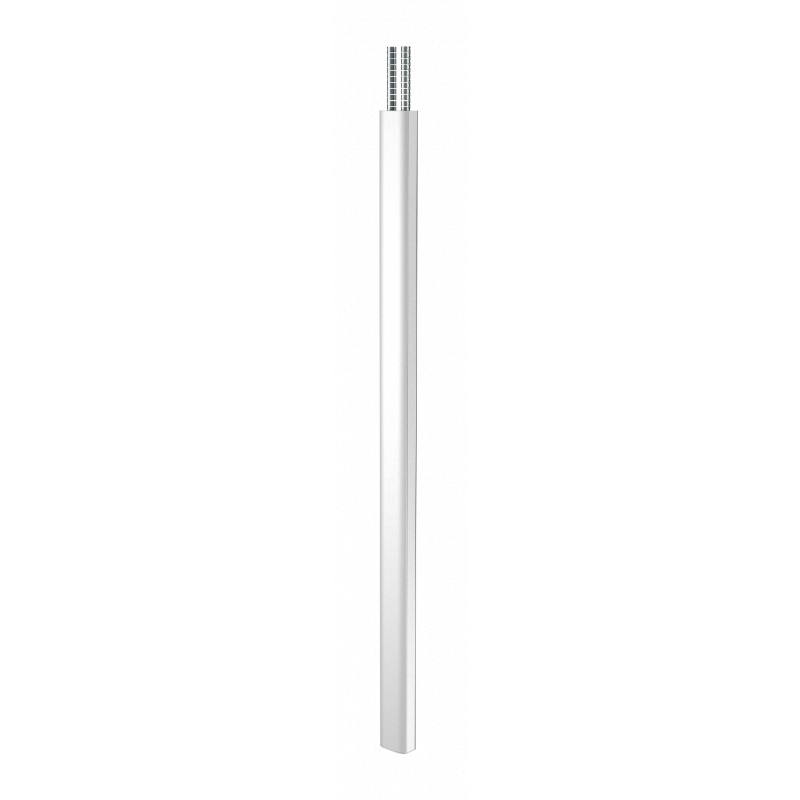

Service pole, type ISSDM45F. ISS aluminium service pole with a 45 mm system opening.Set consists of:1 two-compartment pole with 2 flexible hoses to the ceiling Total length of the aluminium profile: 2,300 mm2 aluminium covers, length: 2,300 mmThe colours are either pure white or anodised. There are two 45 mm system openings on opposite sides for direct installation of Module 45® devices. The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see articles below).
Installation column systems > Installation column
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable | yes |
|---|---|
| Cable entry | Top |
| Ceiling mounting | yes |
| Changes according to location | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 140,9507 kg CO2e / 1 Piece |
| Colour | Pure white; RAL 9010 |
| Continuous profile | yes |
| Cover width | 45 mm |
| Dimension | 2300x80x130 |
| Fastening type | Stand |
| Floor mounting | yes |
| Halogen-free | yes |
| Height | 130 mm |
|---|---|
| Height compensation, max. | 1500 mm |
| Length | 2300 mm |
| Material | Aluminium |
| Number of compartments | 2 St. |
| Number of usable covers | 2 |
| Pole height, max. | 3800 mm |
| Pole height, min. | 2300 mm |
| Pole shape | Oval |
| Pre-wired | no |
| Version for | Double-sided |
| Width | 80 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6289974 OBO BETTERMANN COLUMN ISSDM45F BL | 78 Kbytes |
|
