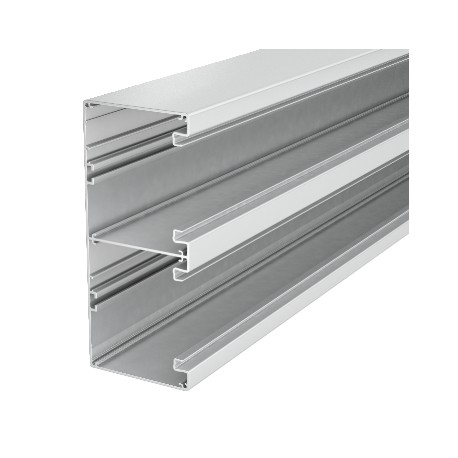

OBO BETTERMANN GA-D90210RW 6279600 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

6279600 OBO BETTERMANN CHANNEL GA-D90210 BL

Reference: GA-D90210RW

Code: 6279600

Manufacturer: OBO BETTERMANN

Description:

CHANNEL GA-D90210 BL
Device installation trunking Rapid 80, symmetrical, double, trunking width 210, trunking height 90. Device installation trunking Without base perforation suitable for direct wall mounting or mounting on panels. Over-lengths up to 6,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the device installation trunking are laminated.Note:For anodised device installation trunking and fittings made from aluminium, light colour differences caused by tolerance based on the material and process conditions, cannot be avoided (according to DIN 17 611). Alternatively, we recommend powder coating in the colour RAL 9006 (white aluminium).

Categories:

  • Installation ducts for wall and ceiling > Wall duct
  • OBO BETTERMANN > LFS cable routing systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 280,34 €

Unit Price: 140,17 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Antibacterial treatmentno
Base perforationWithout base perforation
Cable retaining clipno
CO2 Footprint (GWP) Cradle-to-Gate48,8038 kg CO2e / 1 Meter
ColourPure white; RAL 9010
Cover mounting typeInternal
Cover suppliedno
Cover width76,5 mm
Cover width 276,5 mm
Dimension90x210x2000
Duct connectorno
Halogen-freeyes
Height90 mm
Length2000 mm
MaterialAluminium
Mounting perforation in baseno
Number of covers2
Number of insertable partitions2
Permitted temperature range, max.60 °C
Permitted temperature range, min.-25 °C
Protection ratingIP30
Protection rating IK codeIK10
Protective filmyes
Rear panel version (inner side)Continuous C profile
Rectangular shapeyes
Symmetricalyes
Usable cross-section14688 mm²
Width210 mm
