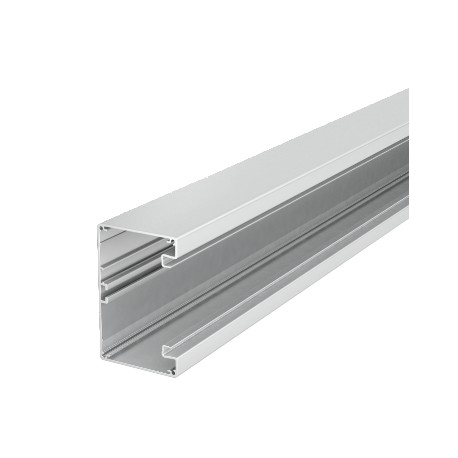

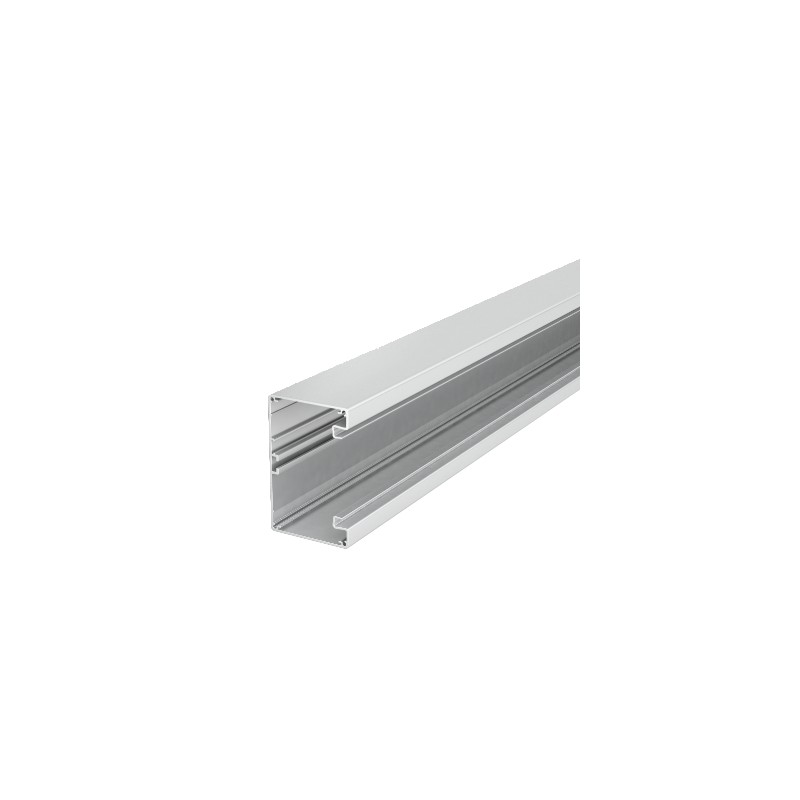

OBO BETTERMANN GA-S70110EL 6279203 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

GA-S70110EL 6279203 OBO BETTERMANN CHANNEL GA-S70110 ALU

Reference: GA-S70110EL

Code: 6279203

Manufacturer: OBO BETTERMANN

Description:

CHANNEL GA-S70110 ALU
GA-S70110EL mechanism channel, symmetrical 70x110x2000 Aluminum, Alu, anodized
Device installation trunking Rapid 80, trunking width 110, trunking height 70, symmetrical. Device installation trunking Without base perforation suitable for direct wall mounting or mounting on panels. Over-lengths up to 6,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the device installation trunking are laminated.Note:For anodised device installation trunking and fittings made from aluminium, light colour differences caused by tolerance based on the material and process conditions, cannot be avoided (according to DIN 17 611). Alternatively, we recommend powder coating in the colour RAL 9006 (white aluminium).

Categories:

  • Installation ducts for wall and ceiling > Wall duct
  • OBO BETTERMANN > LFS cable routing systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 886,21 €

Unit Price: 73,851 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Antibacterial treatmentno
Base perforationWithout base perforation
Cable retaining clipno
CO2 Footprint (GWP) Cradle-to-Gate25,5025 kg CO2e / 1 Meter
Colouraluminium
Cover mounting typeInternal
Cover suppliedno
Cover width76,5 mm
Dimension70x110x2000
Duct connectorno
Halogen-freeyes
Height70 mm
Length2000 mm
MaterialAluminium
Mounting perforation in baseno
Number of covers1
Number of insertable partitions1
Permitted temperature range, max.60 °C
Permitted temperature range, min.-25 °C
Protection ratingIP30
Protection rating IK codeIK10
Protective filmyes
Rear panel version (inner side)Continuous C profile
Rectangular shapeyes
SurfaceAnodised
Symmetricalyes
Usable cross-section4715 mm²
Width110 mm

ETIM for 6279203 Cable trunking systems for wall and ceilings (EC001938)

Feature nameWidth (EF000008)
Feature value110 mm
Feature nameDepth (EF000049)
Feature value70 mm
Feature nameLength (EF001438)
Feature value2000 mm
Feature nameNumber of covers (EF004430)
Feature value1
Feature nameCovers included (EF008479)
Feature valueNo
Feature nameCover width 1 (EF005147)
Feature value76.5 mm
Feature nameSymmetric (EF005329)
Feature valueYes
Feature nameConstruction type rectangular (EF007674)
Feature valueYes
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueAnodised
Feature nameConstruction rear wall (inner side) (EF006265)
Feature valueContinuous C-profile
Feature nameWith protective foil (EF005266)
Feature valueYes
Feature nameNumber of plug-in partitions (EF004438)
Feature value1
Feature nameWith duct connector (EF004826)
Feature valueNo
Feature nameBottom perforation (EF004545)
Feature valueNo
Feature nameMounting method cover (EF002922)
Feature valueInner lying
Feature nameWith cable fixing clip (EF004815)
Feature valueNo
Feature nameUseful cross section (EF005140)
Feature value4715 mm²
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameOperating temperature (EF001742)
Feature value-25 °C
