6276960 OBO BETTERMANN T-PIECE GA-ST90130 BL
GA-ST90130RW
6276960
OBO BETTERMANN

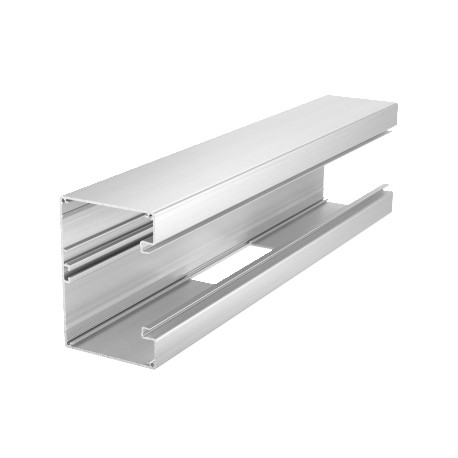

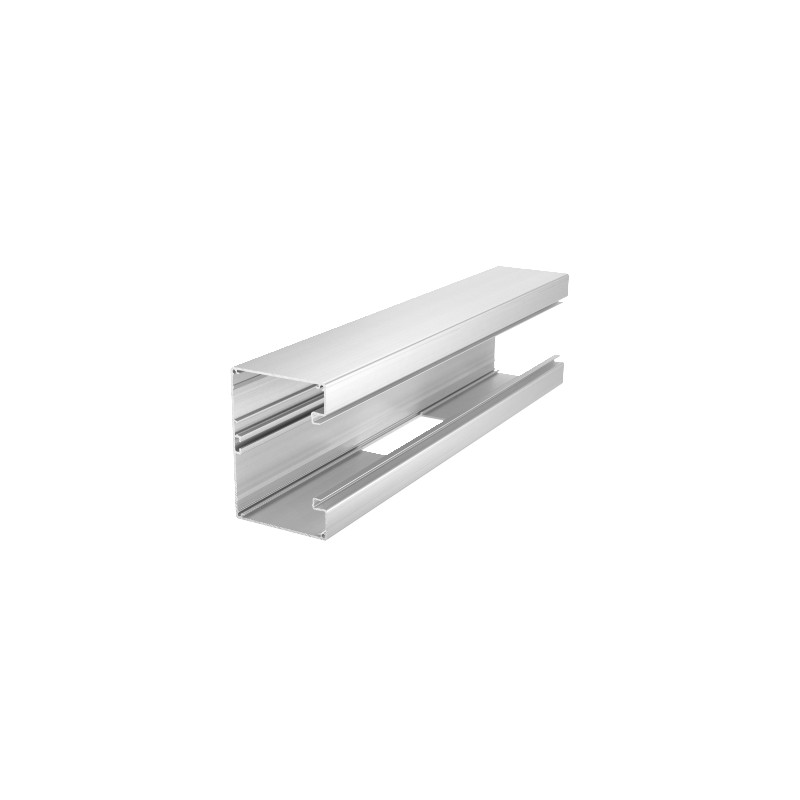

T-PIECE GA-ST90130 BL
T piece, symmetrical, for device installation trunking Rapid 80 type GA-S90130. T piece for branches of Rapid 80 GA aluminium device installation trunking.
Installation ducts for wall and ceiling > Tee for wall duct
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 15,549 kg CO2e / 1 Piece |
| Colour | Pure white; RAL 9010 |
| Cover mounting type | Internal |
| Cover width | 76,5 mm |
| Dimension | 90x130x500 |
| Duct connector | no |
| for duct width | 130 mm |
| for trunking height | 90 mm |
| Halogen-free | yes |
| Height | 90 mm |
| Length | 500 mm |
|---|---|
| Material | Aluminium |
| Mounting perforation in base | no |
| Number of covers | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Protective film | yes |
| Symmetrical | yes |
| Version for | Base |
| Width | 130 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6276960 OBO BETTERMANN T-PIECE GA-ST90130 BL | 49 Kbytes |
|
