6248497 OBO BETTERMANN CHANNEL LKM40040 BL
LKM40040RW
6248497
OBO BETTERMANN
12 m.
CHANNEL LKM40040 BL

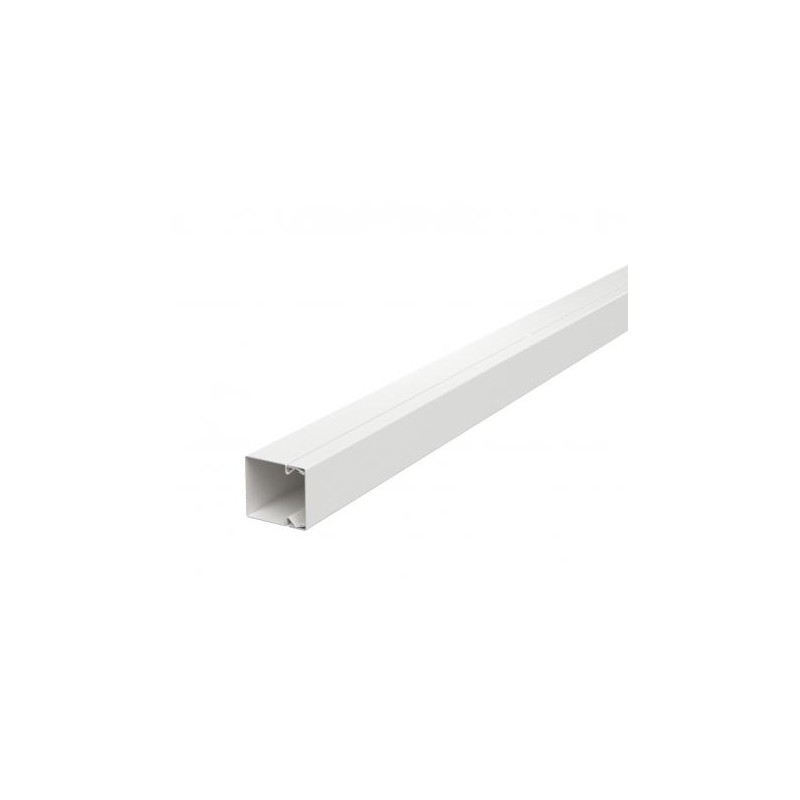

Cable duct, type LKM 40040. Duct cover and base with base perforation.Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Installation ducts for wall and ceiling > Mini/Maxi trunking
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Base perforation | with base perforation |
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0852 kg CO2e / 1 Meter |
| Colour | Pure white; RAL 9010 |
| Delivery on a roll | no |
| Dimension | 40x40x2000 |
| Duct connector | no |
| Fastening type | Base perforation |
| Halogen-free | yes |
| Height | 44 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 6 |
|---|---|
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 6 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 6 |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Protective film | no |
| Surface | Strip galvanized / plastic coated |
| Transparent | no |
| Usable cross-section | 1537 mm² |
| Version, cable trunking cover | Loose |
| Width | 40 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6248497 OBO BETTERMANN CHANNEL LKM40040 BL | 41 Kbytes |
|
