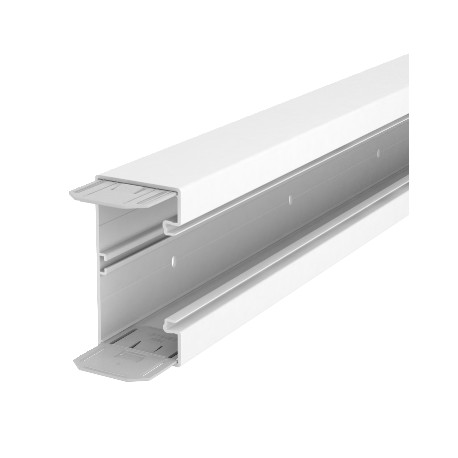

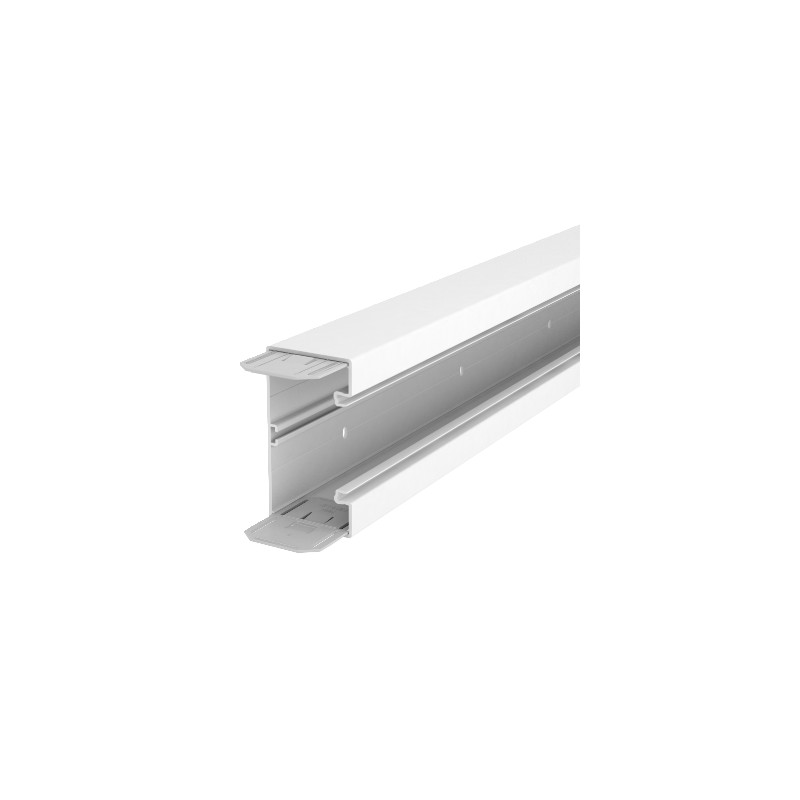

6114200 OBO BETTERMANN CHANNEL RAPID80 LH 70X130 1C BL
GKH-70130RW
6114200
OBO BETTERMANN
2
CHANNEL RAPID80 LH 70X130 1C BL
Device installation trunking Rapid 80, trunking width 130, trunking height 70, halogen-free. GKH device installation trunking made of halogen-free PC/ABS, suitable for direct wall mounting or on wall brackets. Fastening takes place using the perforation in the trunking. The GKH device installation trunking possesses a C profile on the floor to accept a plastic partition. All the switch programmes with a support ring and support clamp design as well as Modul 45 installation devices can be installed in the accessory mounting boxes of series 71GD.... The system opening is 76.5 mm. On each trunking length, a coupling pair is pre-assembled on one side. The cover must be ordered separately.Covers must be ordered separately.
Installation ducts for wall and ceiling > Wall duct
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Base perforation | With base perforation |
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,2213 kg CO2e / 1 Meter |
| Colour | Pure white; RAL 9010 |
| Cover mounting type | Internal |
| Cover supplied | no |
| Cover width | 76,5 mm |
| Dimension | 70x130x2000 |
| Duct connector | yes |
| Halogen-free | yes |
| Height | 70 mm |
| Length | 2000 mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Mounting perforation in base | yes |
|---|---|
| Number of covers | 1 |
| Number of insertable partitions | 1 |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -15 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK08 |
| Protective film | yes |
| Rear panel version (inner side) | Continuous C profile |
| Rectangular shape | yes |
| Symmetrical | yes |
| Usable cross-section | 7600 mm² |
| Width | 130 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6114200 OBO BETTERMANN CHANNEL RAPID80 LH 70X130 1C BL | 53 Kbytes |
|
