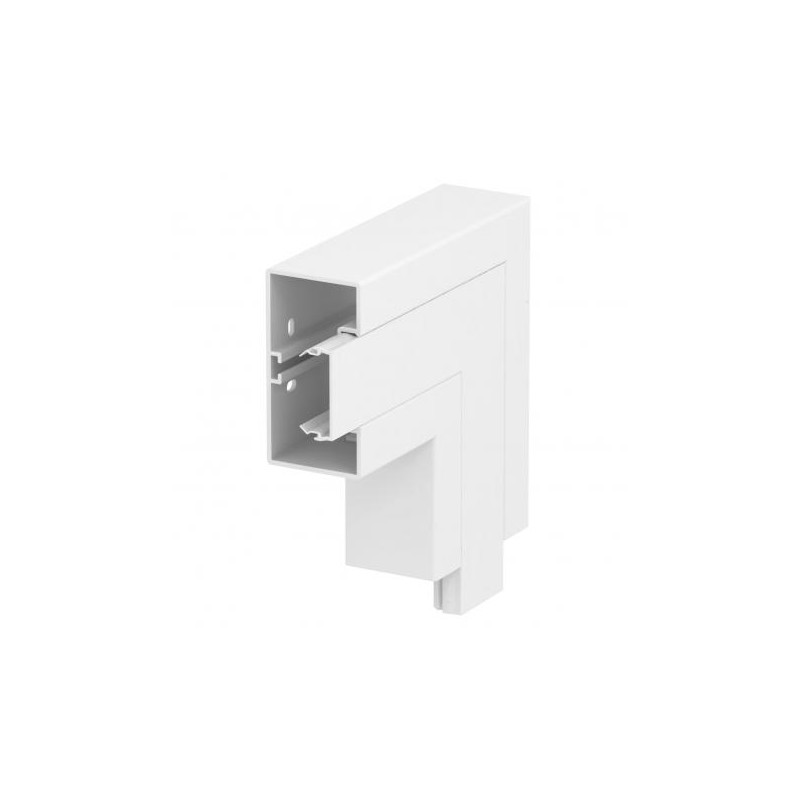

GK-FS53100RW 6113080 OBO BETTERMANN PLANE R45-2 53X100 NOT VARIAB BL
GK-FS53100RW
6113080
OBO BETTERMANN
< PLANE R45-2 53X100 NOT VARIAB BL
GK-FS53100RW flat angle, non-variable 200x200x100 Polyvinyl chloride, PVC,
Flat angle, for device installation trunking Rapid 45-2 type GK-53100. Flat angle for changing the direction of the Rapid 45-2 device installation trunking.
Installation ducts for wall and ceiling > Flat bend for wall duct
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| Antibacterial treatment | no |
| Cable retaining clip | no |
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8865 kg CO2e / 1 Piece |
| Colour | Pure white; RAL 9010 |
| Cover mounting type | Internal |
| Cover width | 45 mm |
| Dimension | 200x200x100 |
| Duct connector | no |
| for duct width | 100 mm |
| for trunking height | 53 mm |
| Halogen-free | no |
| Height | 53 mm |
|---|---|
| Length | 175 mm |
| Material | Polyvinylchloride |
| Mounting perforation in base | yes |
| Number of covers | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Protection rating | IP40 |
| Protection rating IK code | IK08 |
| Protective film | yes |
| Symmetrical | yes |
| Version for | Base and cover |
| Width | 100 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6113080 OBO BETTERMANN PLANE R45-2 53X100 NOT VARIAB BL | 42 Kbytes |
|
