6112603 OBO BETTERMANN CHANNEL RAPID45-2 53X165 2CALU
GA-53165EL
6112603
OBO BETTERMANN
6 m.
CHANNEL RAPID45-2 53X165 2CALU

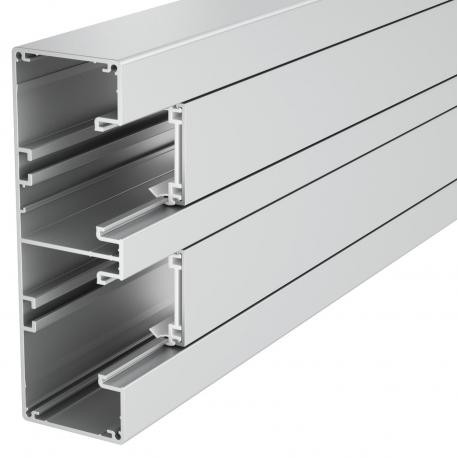

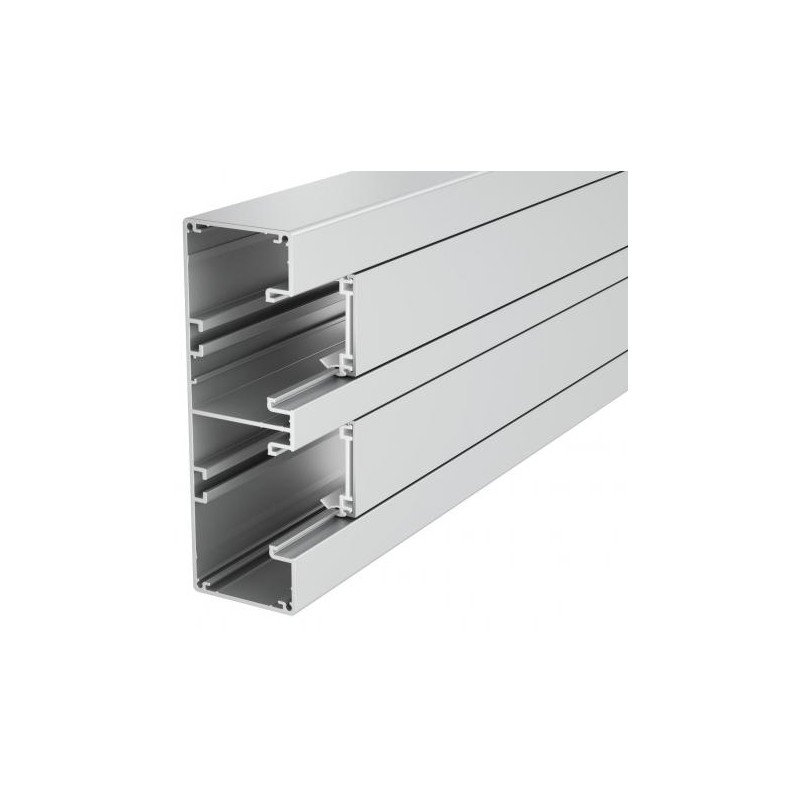

Device installation trunking Rapid 45-2, trunking width 165, trunking height 53. Aluminium device installation trunking complete with bottom and top part. The lower part is without base perforation. Note:For anodised device installation trunking and fittings made from aluminium, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.
Installation ducts for wall and ceiling > Wall duct
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 42,9105 kg CO2e / 1 Meter |
| Colour | aluminium |
| Cover mounting type | Internal |
| Cover supplied | yes |
| Cover width | 45 mm |
| Cover width 2 | 45 mm |
| Dimension | 53x165x2000 |
| Duct connector | no |
| Halogen-free | yes |
| Height | 53 mm |
| Length | 2000 mm |
| Material | Aluminium |
| Mounting perforation in base | no |
|---|---|
| Number of covers | 2 |
| Number of insertable partitions | 2 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Protection rating | IP40 |
| Protection rating IK code | IK10 |
| Protective film | yes |
| Rear panel version (inner side) | Continuous C profile |
| Rectangular shape | yes |
| Surface | Anodised |
| Symmetrical | yes |
| Usable cross-section | 6600 mm² |
| Width | 165 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6112603 OBO BETTERMANN CHANNEL RAPID45-2 53X165 2CALU | 56 Kbytes |
|
