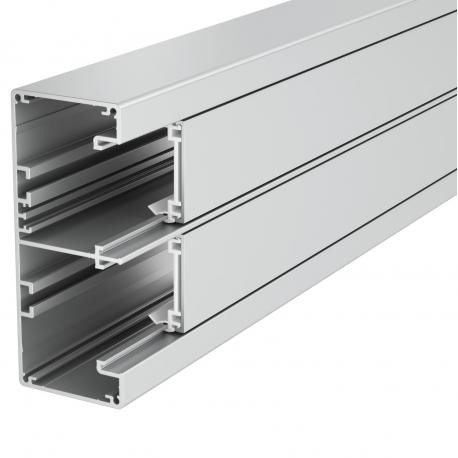

OBO BETTERMANN GA-53130EL 6112503 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

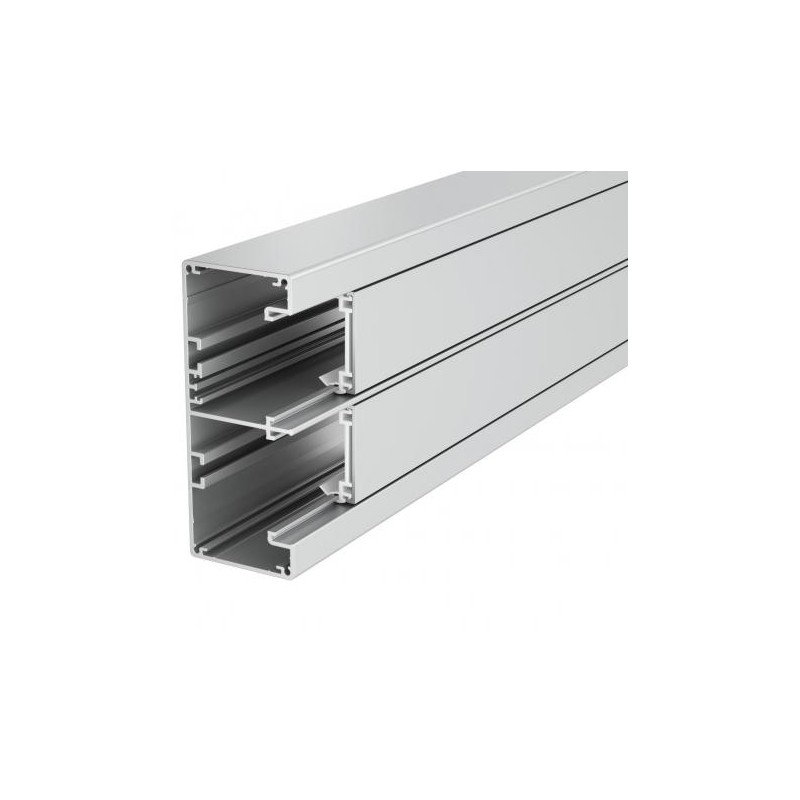

GA-53130EL 6112503 OBO BETTERMANN CHANNEL RAPID45-2 53X130 2CALU

Reference: GA-53130EL

Code: 6112503

Manufacturer: OBO BETTERMANN

Description:

CHANNEL RAPID45-2 53X130 2CALU
GA-53130EL Mechanism Channel, Rapid 45-2, 2-compartment, Alu 53x130x2000 Aluminum, Alu, anodized
Device installation trunking Rapid 45-2, trunking width 130, trunking height 53. Aluminium device installation trunking complete with bottom and top part. The lower part is without base perforation. Note:For anodised device installation trunking and fittings made from aluminium, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.

Categories:

  • Installation ducts for wall and ceiling > Wall duct
  • OBO BETTERMANN > LFS cable routing systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 773,34 €

Unit Price: 96,667 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Antibacterial treatmentno
Cable retaining clipno
CO2 Footprint (GWP) Cradle-to-Gate37,2339 kg CO2e / 1 Meter
Colouraluminium
Cover mounting typeInternal
Cover suppliedyes
Cover width45 mm
Cover width 245 mm
Dimension53x130x2000
Duct connectorno
Halogen-freeyes
Height53 mm
Length2000 mm
MaterialAluminium
Mounting perforation in baseno
Number of covers2
Number of insertable partitions2
Permitted temperature range, max.60 °C
Permitted temperature range, min.-15 °C
Protection ratingIP40
Protection rating IK codeIK10
Protective filmyes
Rear panel version (inner side)Continuous C profile
Rectangular shapeyes
SurfaceAnodised
Symmetricalyes
Usable cross-section4900 mm²
Width130 mm

ETIM for 6112503 Cable trunking systems for wall and ceilings (EC001938)

Feature nameWidth (EF000008)
Feature value130 mm
Feature nameDepth (EF000049)
Feature value53 mm
Feature nameLength (EF001438)
Feature value2000 mm
Feature nameNumber of covers (EF004430)
Feature value2
Feature nameCovers included (EF008479)
Feature valueYes
Feature nameCover width 1 (EF005147)
Feature value45 mm
Feature nameCover width 2 (EF005148)
Feature value45 mm
Feature nameSymmetric (EF005329)
Feature valueYes
Feature nameConstruction type rectangular (EF007674)
Feature valueYes
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueAnodised
Feature nameConstruction rear wall (inner side) (EF006265)
Feature valueContinuous C-profile
Feature nameWith protective foil (EF005266)
Feature valueYes
Feature nameNumber of plug-in partitions (EF004438)
Feature value2
Feature nameWith duct connector (EF004826)
Feature valueNo
Feature nameBottom perforation (EF004545)
Feature valueNo
Feature nameMounting method cover (EF002922)
Feature valueInner lying
Feature nameWith cable fixing clip (EF004815)
Feature valueNo
Feature nameUseful cross section (EF005140)
Feature value4900 mm²
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameOperating temperature (EF001742)
Feature value-15 °C
