6112423 OBO BETTERMANN EXT R45-2 53X100 NOT VARIABL ALU
GA-AS53100EL
6112423
OBO BETTERMANN
< EXT R45-2 53X100 NOT VARIABL ALU

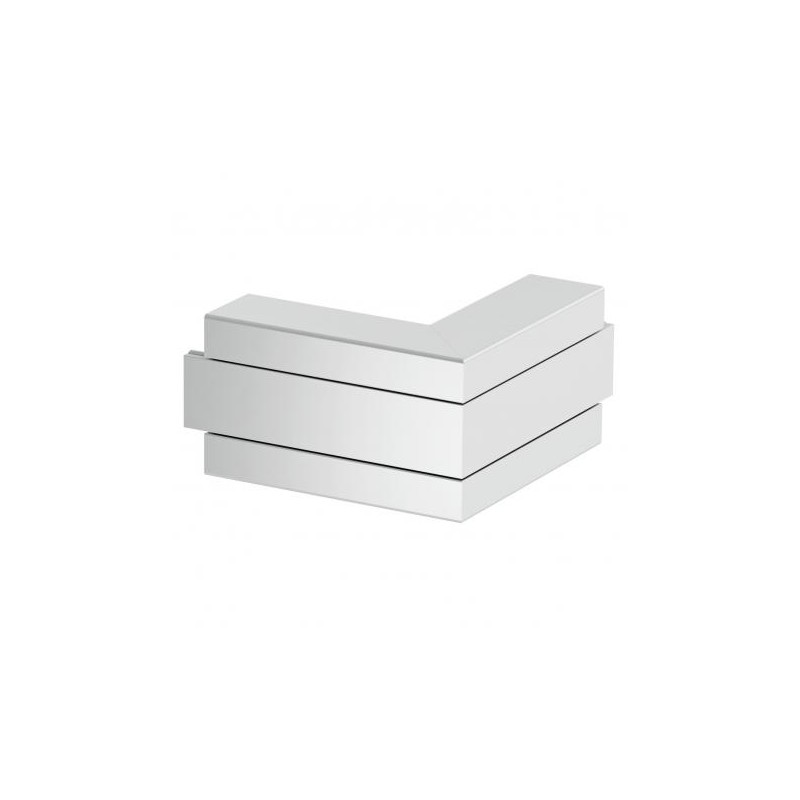

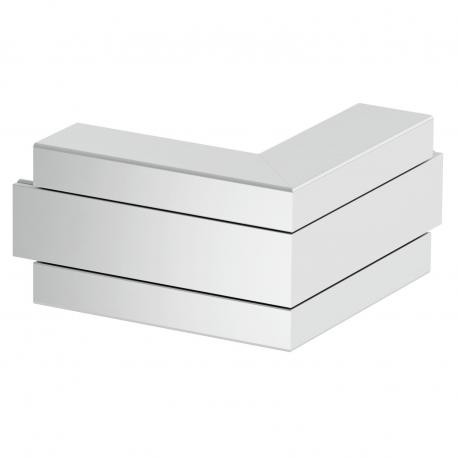

External corner, for device installation trunking Rapid 45-2 type GA-53100. External corner 90° aluminium for changing the direction of device installation trunking Rapid 45-2 GA...Note:For anodised device installation trunking and fittings made from aluminium, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). The 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.
Installation ducts for wall and ceiling > Outer corner for wall duct
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle range, min. | 90 mm |
|---|---|
| Antibacterial treatment | no |
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,1643 kg CO2e / 1 Piece |
| Colour | aluminium |
| Cover mounting type | Internal |
| Cover width | 45 mm |
| Dimension | 53x100x175 |
| Duct connector | no |
| for duct width | 100 mm |
| for trunking height | 53 mm |
| Halogen-free | yes |
| Height | 53 mm |
| Length | 175 mm |
|---|---|
| Material | Aluminium |
| Mounting perforation in base | no |
| Number of covers | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Protection rating | IP40 |
| Protection rating IK code | IK10 |
| Protective film | yes |
| Surface | Anodised |
| Symmetrical | yes |
| Version for | Base and cover |
| Width | 100 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6112423 OBO BETTERMANN EXT R45-2 53X100 NOT VARIABL ALU | 42 Kbytes |
|
