OBO BETTERMANNLFS cable routing systems - OBO BETTERMANN6112413 OBO BETTERMANN CAP RAPID 45-2 ALU

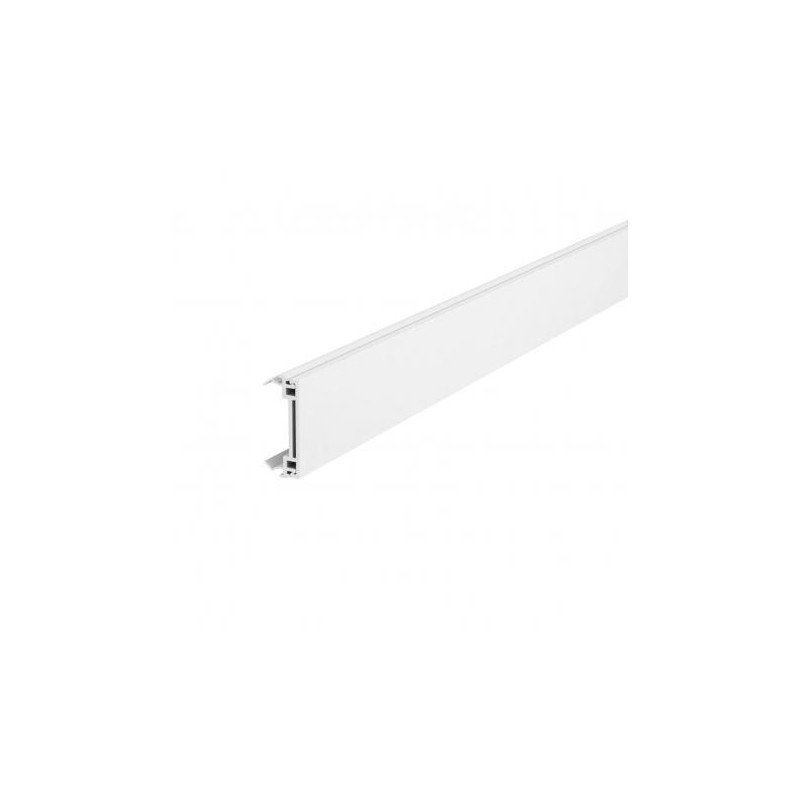

OBO BETTERMANN GA-OT45EL 6112413 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

6112413 OBO BETTERMANN CAP RAPID 45-2 ALU

Reference: GA-OT45EL

Code: 6112413

Manufacturer: OBO BETTERMANN

Description:

CAP RAPID 45-2 ALU
Cover, for device installation trunking Rapid 45-2. Trunking cover for closing the device installation trunking of the Rapid 45-2 GA... series. The 2-piece cover consists of a PVC base profile and an aluminium panel profile.Note:For anodised aluminium trunking, covers and fittings, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). The 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.

Categories:

  • Installation ducts for wall and ceiling > Cover for wall duct/Installation column
  • OBO BETTERMANN > LFS cable routing systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 999,30 €

Unit Price: 24,9826 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate3,7547 kg CO2e / 1 Meter
Colouraluminium
Cover mounting typeInternal
Dimension45x2000
Halogen-freeyes
Height19 mm
Length2000 mm
MaterialAluminium
Permitted temperature range, max.60 °C
Permitted temperature range, min.-15 °C
Protection ratingIP40
Protection rating IK codeIK10
Protective filmyes
SurfaceAnodised
Version forSmooth
Width45 mm

DATASHEET - PDF

Title
Size
Type
6112413 OBO BETTERMANN CAP RAPID 45-2 ALU
42 Kbytes
PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN
15 Mbytes
PDF CATALOGUE INSTALLATION SYSTEMS OBO EN
23 Mbytes
