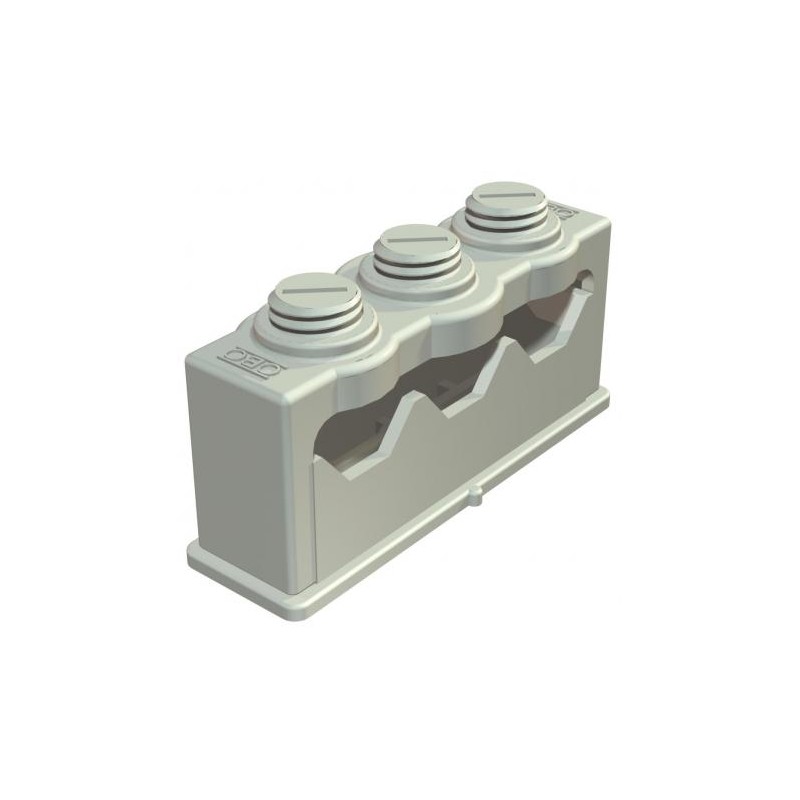

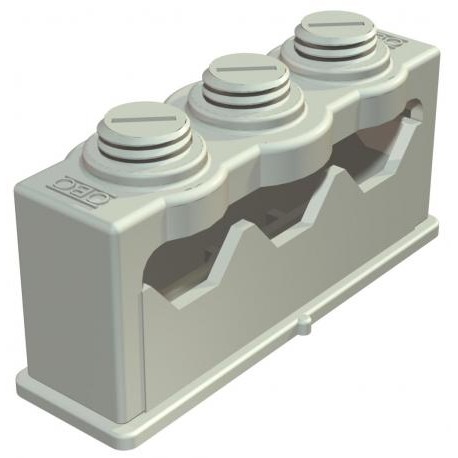

3040 3 2109018 OBO BETTERMANN STAPLE PRESSURE 3040 3
3040 3
2109018
OBO BETTERMANN
25
STAPLE PRESSURE 3040 3
Grip ISO clip, triple. Solid cable fastening through clamping screws, with adhesive base, slot and for screwing to M6 thread.Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Clamping range D, max. | 16 mm |
|---|---|
| Clamping range D, min. | 6 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0629 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | 6-16mm |
| Dimension a | 62 mm |
| Dimension a1 (mm) | 48 mm |
| Dimension b | 18 mm |
| Dimension b1 | 4 mm |
| Dimension c | 61 mm |
| Dimension d | 31 mm |
|---|---|
| Dimension e | 38 mm |
| Dimension f | 55 mm |
| Expandable | no |
| Fastening type | Screw hole |
| Halogen-free | yes |
| Impact-resistant | yes |
| Material | Polystyrene |
| Number of cables/pipes | 3 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
