3000 BMS M16 LGR 2154052 OBO BETTERMANN Angle of 90 Quick-Pipe 3000 BMS M16 LGR M16 Polypropylene, PP
3000 BMS M16 LGR
2154052
OBO BETTERMANN
10
Angle of 90 Quick-Pipe 3000 BMS M16 LGR M16 Polypropylene, PP
90 Angle Quick-Pipe 3000 BMS M16 LGR

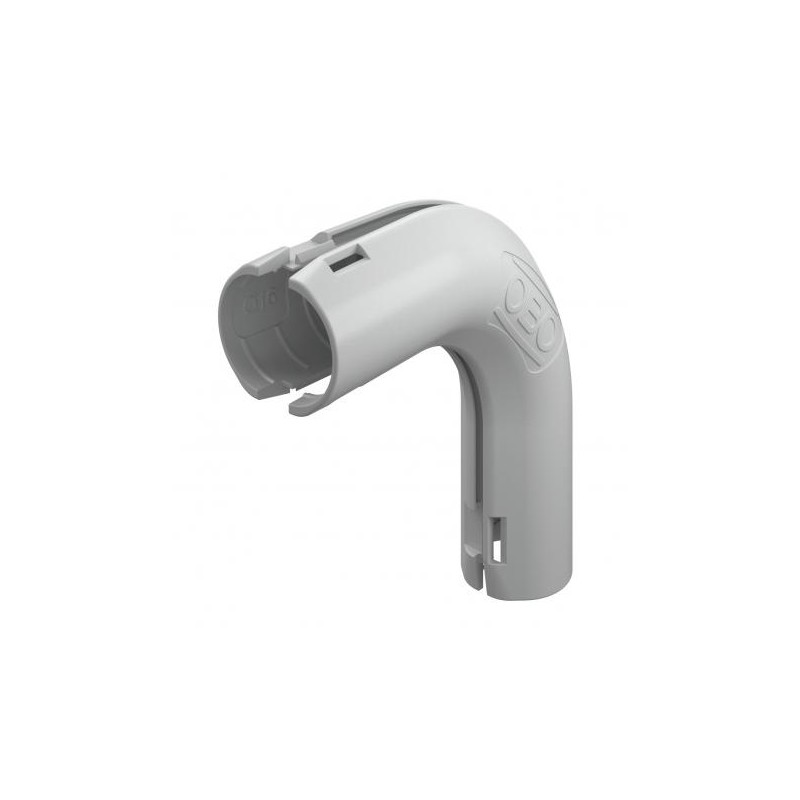

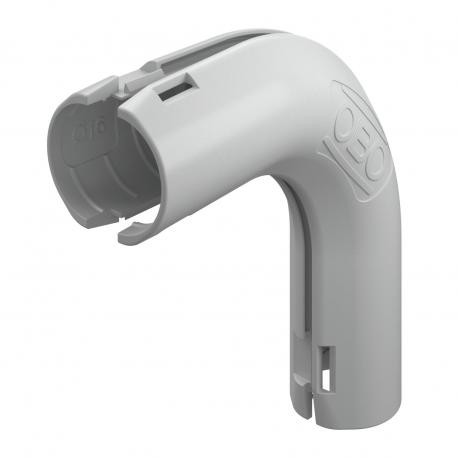

90° Quick pipe bend, light grey. Fitting for plastic electrical installation pipes to create 90° bends. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0439 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M16 |
| Dimension B | 21,4 mm |
| Dimension d | 15,6 mm |
| Dimension L | 69 mm |
| Dimension L1 | 28 mm |
| Dimension R | 20 mm |
| Flexible | no |
|---|---|
| Halogen-free | yes |
| Material | Polypropylene |
| Permitted temperature range, max. | 60 °C |
| Polished surface | no |
| Two-part | yes |
| Version for | Connector |
| With inspection opening and lid | no |
| With sleeve | no |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polypropylene (PP) |
| Surface polished (EF006437) | No |
| Surface brushed (EF008705) | No |
| Halogen free (EF000025) | Yes |
| Model (EF000010) | EV003907 |
| With sleeve (EF006023) | No |
| Two-part (EF001590) | Yes |
| With inspection opening and cover (EF009760) | No |
| Colour (EF000007) | Grey |
| Flexible (EF000083) | No |
| Bend angle (EF005431) | 90 ° |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
